01 - Door And Panel Parts


02 - Control Panel Parts

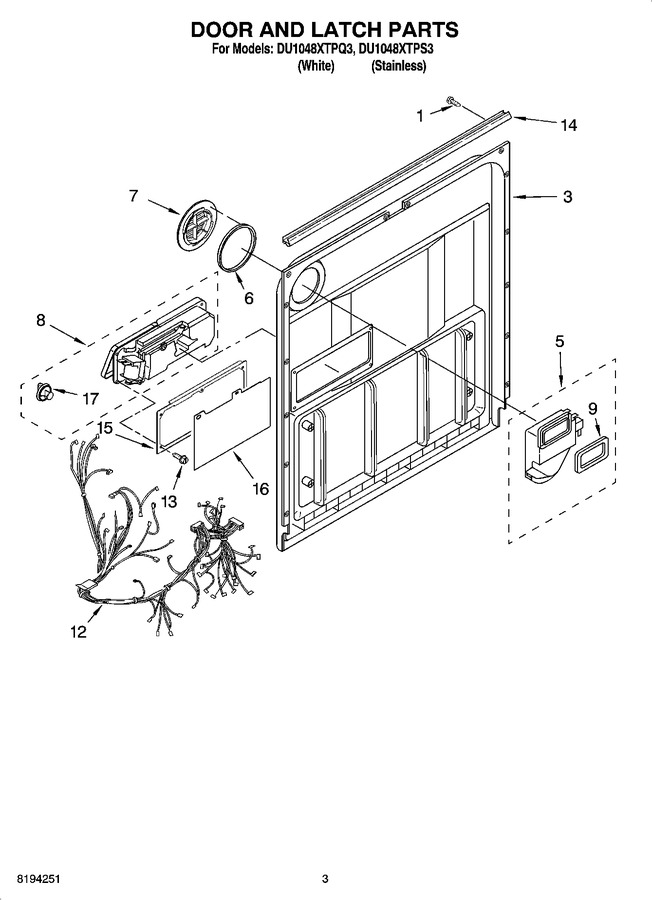

03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 7.76
3	WP8269311		Inner Door (also Order Item 6)   (Replaces: 8269311)				$ 271.05
5	WP8558980		Vent Assembly (also Order Item 6)   (Replaces: 8542603)				$ 113.49
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	8542566		Deflector, Vent (also Order Item 6)				$ 45.08
8	8531825		Dispenser, Assembly		Appelez-nous	-
9	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 92.25
12	8573180		Wiring Harness Main		Appelez-nous	-
13	WPW10177098		Screw   (Replaces: 8281154)			Immediately	$ 7.64
14	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 179.21
15	WPW10462232		Bracket, Dispenser   (Replaces: 8535637)				$ 36.04
16	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 107.76
17	WP8558307		Cap, Rinse Aid   (Replaces: 8558307)			Immediately	$ 21.27
