01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

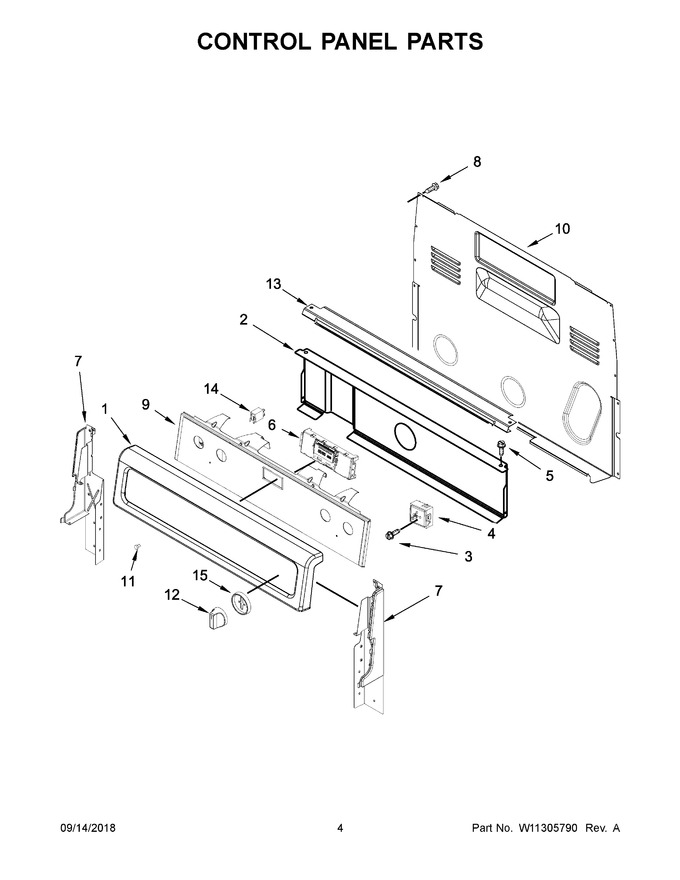

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10318550		Console (stainless)   (Replaces: W10318550)				$ 273.23
2	W10134247		Shield, Heat			Immediately	$ 358.82
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
4	W11129442		Switch, Infinite (left Front)   (Replaces: W10437097)			Immediately	$ 100.57
5	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
6	W11308431		Control (mrc)   (Replaces: W10900999)			Immediately	$ 393.74
7	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
8	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
9	W10840425		Assembly, Active Overlay (stainless)				$ 476.44
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
12	W11517331		Knob (stainless)   (Replaces: W10850027)			Immediately	$ 66.19
13	W10525121		Bracket, Console Mounting				$ 98.85
14	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 86.31
15	W10850042		Bezel (stainless)			Immediately	$ 65.25
4A	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
4B	W10857622		Switch, Infinite (right Front)   (Replaces: W10437092)			Immediately	$ 211.69
4C	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 104.64
7A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17

    View Diagram in Separate Window       Print Part List
