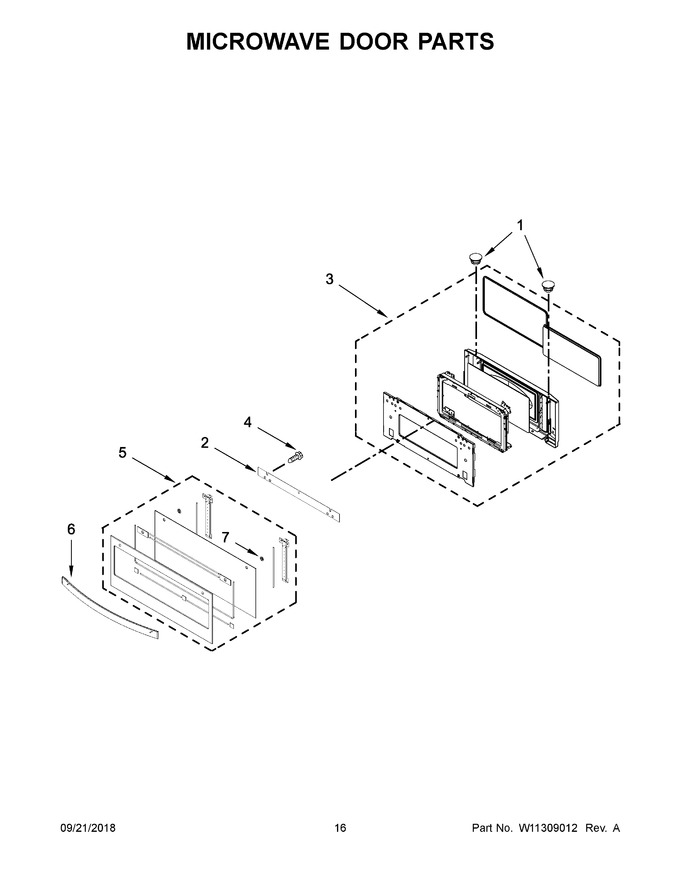

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	W10359769		Foam, Door Handle				$ 14.76
3	W10737653		Assembly, Inner Door				$ 411.83
4	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
5	W11111744		Assembly, Outer Door (stainless)   (Replaces: W10866276)				$ 403.99
6	W11113204		Assembly, Handle (stainless)   (Replaces: W10880280)				$ 188.91
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
5A	W11111745		Assembly, Outer Door (black Stainless)   (Replaces: W11028414)		Appelez-nous	-
6A	W10903344		Assembly, Handle (black Stainless)		Appelez-nous	-
