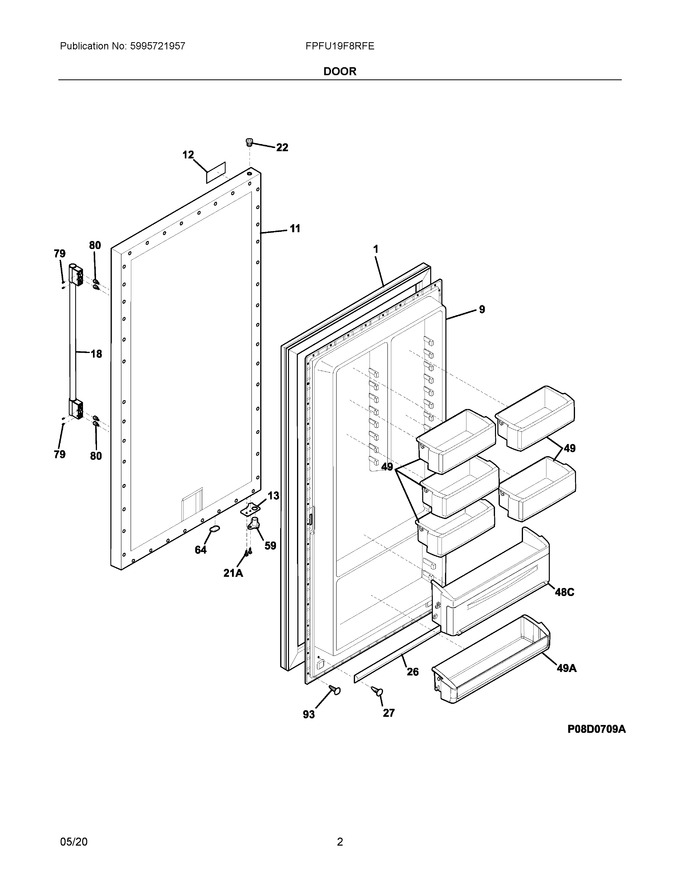

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
05 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505782 | Gasket |
|
Immediately | $ 261.78 | ||||
| 9 | 297280800 | Panel-inner Door, Frzr |
|
Immediately | $ 248.85 | ||||
| 11 | 297329324 | Panel-outer Door, Stainless Steel |
|
$ 993.47 | |||||
| 12 | 809108704 | Nameplate, Frig Pro (Replaces: 809108701) |
|
Immediately | $ 49.10 | ||||
| 13 | 297302801 | Door Stop, Lh |
|
$ 19.74 | |||||
| 18 | 297330301 | Handle Assembly, Stainless, W/endcaps |
|
$ 278.09 | |||||
| 22 | 216970801 | Bearing, Hinge, Gray, Top |
|
$ 4.25 | |||||
| 26 | 216524201 | Gasket, Secondary |
|
$ 55.13 | |||||
| 27 | 5303212828 | Clip, Panel Mtg |
|
$ 18.48 | |||||
| 49 | 297295300 | Bin-door, 2-liter |
|
$ 139.39 | |||||
| 59 | 297302900 | Bearing, Door Stop |
|
$ 7.00 | |||||
| 64 | 216403700 | Plug-button, Hole Filler, Door Base (Replaces: 216403701) |
|
$ 64.58 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 93 | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.94 | ||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 16.07 | |||||
| 48C | 297350101 | Bin-door, Soft Freeze (Replaces: 297350100) |
|
Immediately | $ 154.70 | ||||
| 49A | 297295401 | Bin-door, Gallon, W/trim |
|
$ 152.41 | |||||
| NI | 297048000 | Screw, Anchor, #8, White |
|
$ 13.39 | |||||
| NIA | 240537301 | Nut-anchor, Door Hdl Screw |
|
$ 12.60 | |||||
| NIA | 5304512450 | Cover, Bin |
|
- | |||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 139.81 | |||||
| NIB | 297175300 | Wrench, Allen |
|
$ 15.49 |
