SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)

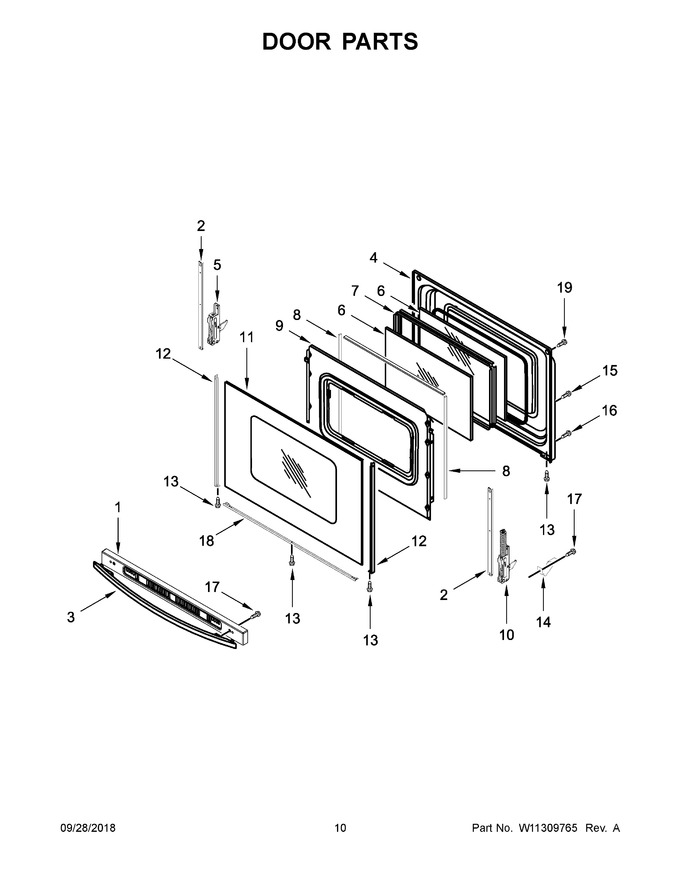

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 157.83
2	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 24.91
3	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 227.39
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
6	WP8053948		Glass, Inner   (Replaces: 9758162)			Immediately	$ 208.85
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 209.98
10	WPW10299226		Hinge, Active   (Replaces: W10299226)			Immediately	$ 83.84
11	W11702168		Assembly, Outer Door Glass (black)   (Replaces: W10886896)				$ 167.28
12	W10761018		Trim, Side (black (left))   (Replaces: W10746436)			Immediately	$ 49.32
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
14	W10137382		Clip, Panel			Immediately	$ 43.58
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
16	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
17	W11396735		Screw   (Replaces: W10163951)				$ 13.28
18	WP8523177		Trim, Bottom (black)   (Replaces: 8523177)				$ 149.27
19	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
12A	W10761014		Trim, Side (black (right))   (Replaces: W10746435)			Immediately	$ 65.66

    View Diagram in Separate Window       Print Part List
