01 - Cover Sheet
02 - Cooktop Parts

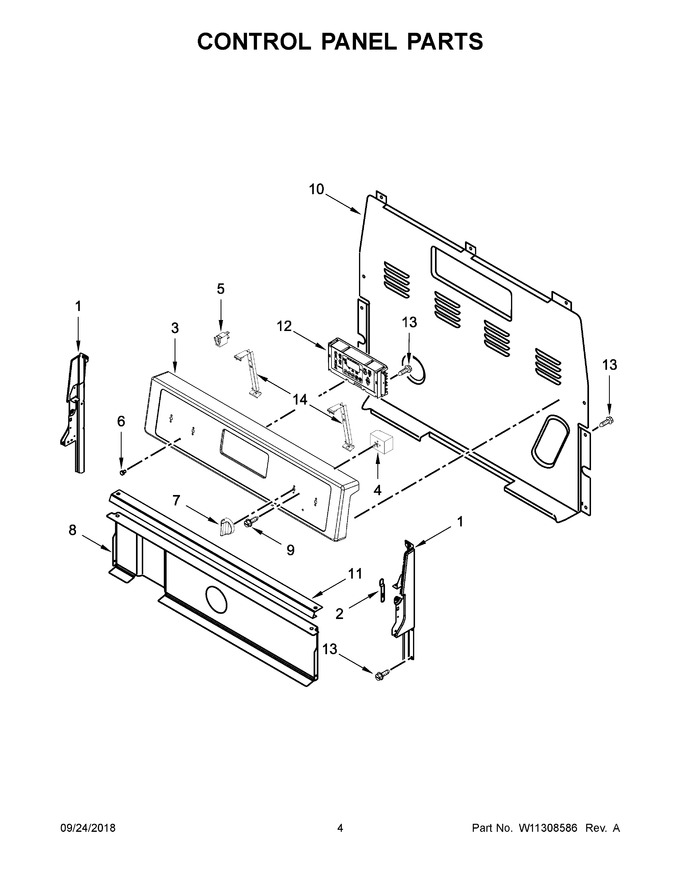

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 3 | W11231943 | Console, Assembly (black) (Replaces: W11135549) |
|
$ 129.61 | |||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10836470 | Knob (black) (Replaces: W10676213) |
|
Immediately | $ 38.09 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | W11122551 | Control, Range (lcc95) (black) (Replaces: W10887916) |
|
$ 501.60 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 12A | W11122546 | Control, Range (lcc95) (white) (Replaces: W10887919) |
|
$ 502.99 | |||||
| 12B | W11134276 | Control, Range (lcc95) (biscuit) (Replaces: W10887912) |
|
- | |||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 45.17 | |||||
| 1B | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 42.45 | |||||
| 1C | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 60.83 | |||||
| 1D | W11230611 | Endcap (biscuit (left)) (Replaces: W11130373) |
|
- | |||||
| 1E | W11230612 | Endcap (biscuit (right)) (Replaces: W11130380) |
|
- | |||||
| 3A | W11135550 | Console, Assembly (white) |
|
- | |||||
| 3B | W11135552 | Console, Assembly (biscuit) |
|
- | |||||
| 4A | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4B | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 7A | W10853029 | Knob (white) (Replaces: W10676214) |
|
Immediately | $ 38.27 | ||||
| 7B | W10676215 | Knob (biscuit) |
|
- |
