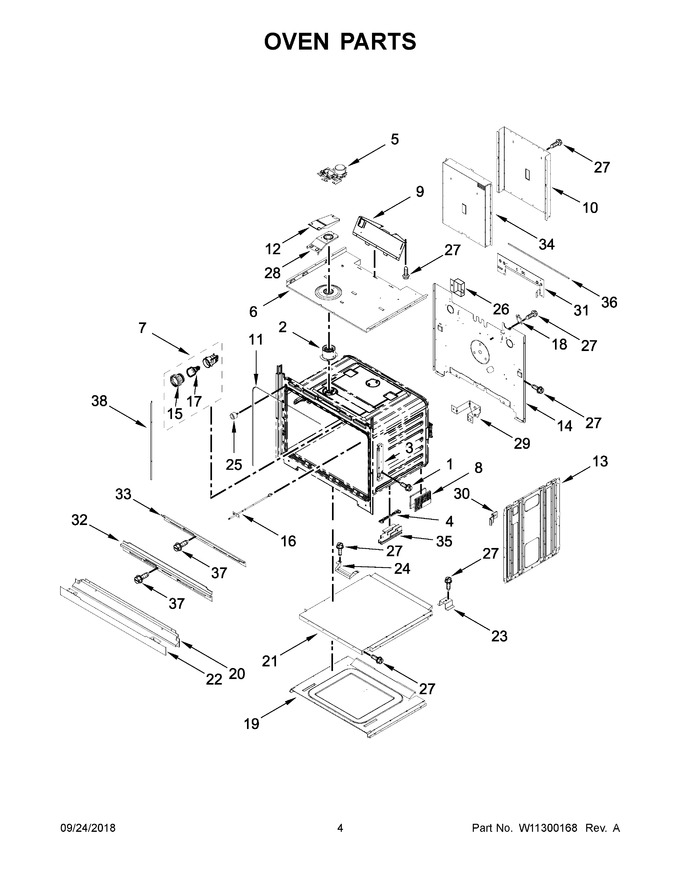

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11613828		Receiver, Hinge   (Replaces: W10616802)			Immediately	$ 57.49
4	W11240831		Spacer, Base   (Replaces: W10618102)				$ 17.25
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 306.46
6	W10904159		Chassis, Top		Appelez-nous	-
7	WPW10734063		Assembly, Light   (Replaces: W10734063)				$ 89.05
8	W10821321		Foot, Base   (Replaces: W10618101)				$ 33.51
9	W10904163		Deflector, Blower			Immediately	$ 169.79
10	W10542857		Duct, Chassis Back (lower)				$ 105.99
11	W10856596		Gasket   (Replaces: W10282961)			Immediately	$ 105.26
12	W10616810		Cover, Vent Exhaust				$ 69.95
13	W10318190		Side, Chassis				$ 117.20
14	W10904162		Back, Chassis		Appelez-nous	-
15	WPW10412722		Lens, Light   (Replaces: W10412722)			Immediately	$ 19.65
16	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
17	WPW10412711		Bulb, Light   (Replaces: W10412711)			Immediately	$ 22.61
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W10282901		Base, Chassis				$ 177.43
20	WPW10327375		Assembly, Bottom Vent (black)   (Replaces: W10327375)				$ 435.99
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 220.05
22	WPW10351237		Trim, Bottom Vent (black)   (Replaces: W10351237)				$ 148.97
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	W10616809		Base, Vent Exhaust				$ 32.24
29	W11027314		Hat Bracket, Vent		Appelez-nous	-
30	W10347649		Spacers, Front				$ 15.02
31	W10904155		Bracket, U-shape		Appelez-nous	-
32	W10730176		Vent, Center 27		Appelez-nous	-
33	W10283037		Vent, Top 27			Immediately	$ 148.31
34	W10318196		Duct, Chassis Back (upper)				$ 218.89
35	W10848812		Foot, Front (left)   (Replaces: W10618103)				$ 32.71
36	W10728475		Gasket, Rubber				$ 38.13
37	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 7.55
38	W10536161		Cover, Side Trim (left)   (Replaces: W10327369)				$ 50.62
20A	W10506345		Assembly, Bottom Vent (white)				$ 136.88
20B	WPW10351280		Assembly, Bottom Vent (stainless)   (Replaces: W10351280)				$ 264.15
22A	WPW10504025		Trim, Bottom Vent (white)   (Replaces: W10504025)				$ 143.58
22B	WPW10327378		Trim, Bottom Vent (stainless)   (Replaces: W10327378)			Immediately	$ 224.77
35A	W10848812		Foot, Front (right)   (Replaces: W10618104)				$ 32.71
38A	W10536161		Cover, Side Trim (right)   (Replaces: W10327368)				$ 50.62
NI	W11688333		Insulation, Back   (Replaces: W10282945)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10520716		Insulation, Wrap		Appelez-nous	-
