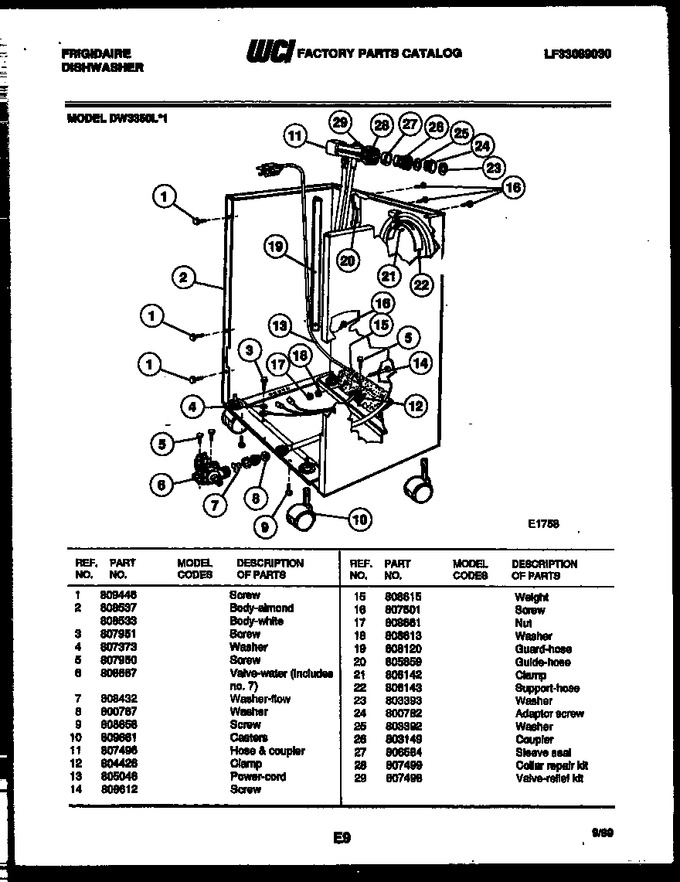

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 809446 | Screw |
|
- | |||||
| 2 | 808533 | Body-white |
|
- | |||||
| 2 | 808537 | Body-almond |
|
- | |||||
| 3 | 807951 | Screw |
|
- | |||||
| 4 | 807373 | Washer |
|
- | |||||
| 5 | 807950 | Screw |
|
- | |||||
| 6 | 808667 | Valve-water (includes No. 7) |
|
- | |||||
| 7 | 808432 | Washer-flow |
|
- | |||||
| 8 | 800787 | Washer |
|
- | |||||
| 9 | WP90767 | Screw (Replaces: 808658) |
|
Immediately | $ 7.43 | ||||
| 10 | 809661 | Casters |
|
- | |||||
| 11 | DWD8C | Hose & Coupler (Replaces: 807496) |
|
- | |||||
| 12 | 804426 | Clamp |
|
- | |||||
| 13 | 805046 | Power-cord |
|
- | |||||
| 14 | 808612 | Screw |
|
- | |||||
| 15 | 808615 | Weight |
|
- | |||||
| 16 | 807501 | Screw |
|
- | |||||
| 17 | 808661 | Nut |
|
- | |||||
| 18 | 808613 | Washer |
|
- | |||||
| 19 | COMM PART | Guard-hose (Replaces: 808120) |
|
- | |||||
| 20 | 805859 | Guide-hose |
|
- | |||||
| 21 | 806142 | Clamp |
|
- | |||||
| 22 | 806143 | Support-hose |
|
- | |||||
| 23 | 803393 | Washer |
|
- | |||||
| 24 | 800782 | Adaptor Screw |
|
- | |||||
| 25 | 803392 | Washer |
|
- | |||||
| 26 | WPW10254672 | Coupler (Replaces: 803149) |
|
Immediately | $ 52.02 | ||||
| 27 | WP910218 | Sleeve Seal (Replaces: 806584) |
|
Immediately | $ 9.50 | ||||
| 28 | WP285170 | Collar Repair Kit (Replaces: 807499) |
|
Immediately | $ 67.50 | ||||
| 29 | 807498 | Valve-relief Kit |
|
- |
