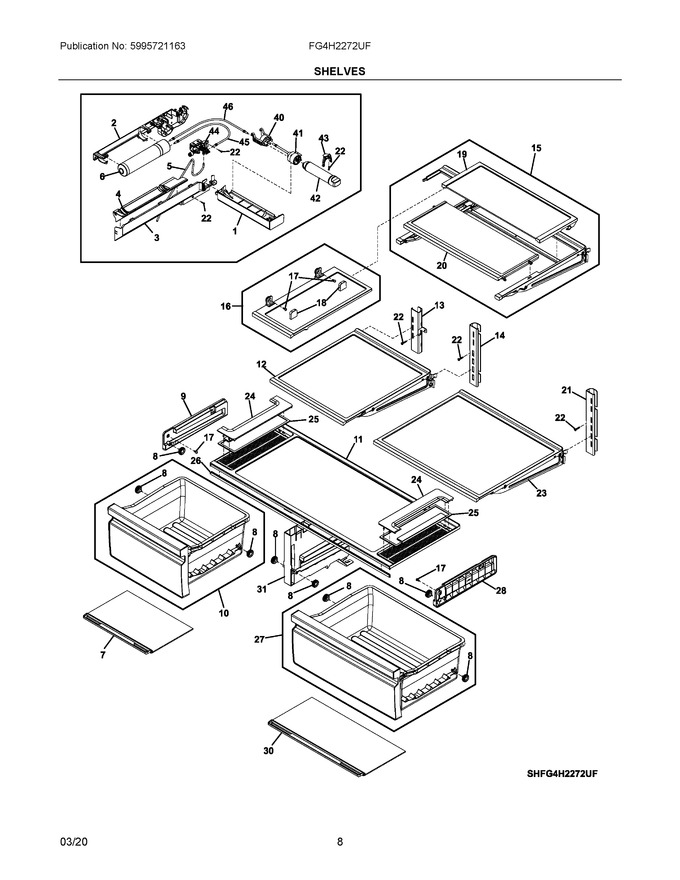

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533262 | Cover, Water Filter (Replaces: 5304519118) |
|
$ 31.54 | |||||
| 2 | 5304519119 | Support, Water Valve, & Tank |
|
$ 35.40 | |||||
| 3 | 140050808090 | Cover, Water Tank (Replaces: 5304519120) |
|
- | |||||
| 4 | 5304519121 | Insulation, Water Tank |
|
- | |||||
| 5 | 5304527422 | Tube, Double Valve, To Ice Maker (Replaces: 5304519122) |
|
Immediately | $ 18.03 | ||||
| 6 | 5304525249 | Tank, Water, Disp Reservoir (Replaces: 243368202) |
|
Immediately | $ 132.12 | ||||
| 7 | 5304519123 | Cover, Mullion Storage, Glass, Lh |
|
$ 39.71 | |||||
| 8 | 5304519124 | Roller, Crisper Glide |
|
$ 18.71 | |||||
| 9 | 5304519125 | Rail, Crisper, Lh Side |
|
- | |||||
| 10 | 5304524914 | Drawer Assembly, Crisper, Lh, W/rollers (Replaces: 5304519126) |
|
$ 119.47 | |||||
| 11 | 5304537071 | Cover Assembly, Crispers, W/glass (Replaces: 5304519127) |
|
$ 112.62 | |||||
| 12 | 5304519128 | Shelf Assembly, Cantilever, Glass, Lh |
|
- | |||||
| 13 | 5304519129 | Bracket, Cantilever Shlf, Lh |
|
- | |||||
| 14 | 5304519130 | Bracket, Cantilever Shlf, Center |
|
$ 58.28 | |||||
| 15 | 5304519131 | Shelf Assembly, Cantilever, Glass, Upper |
|
$ 258.69 | |||||
| 16 | 5304519132 | Shelf Assembly, Flip Up, Glass, Lh |
|
$ 133.98 | |||||
| 17 | 241641504 | Screw, Hilo Phil Pn, .25", White |
|
- | |||||
| 18 | 5304519133 | Cover, Screw, Small |
|
$ 9.10 | |||||
| 19 | 5304519134 | Shelf, Foldable, Glass, Rear |
|
- | |||||
| 20 | 5304519135 | Shelf, Foldable, Glass, Front |
|
- | |||||
| 21 | 5304519136 | Bracket, Cantilever Shlf, Rh |
|
$ 59.85 | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.37 | |||||
| 23 | 5304519137 | Shelf Assembly, Cantilever, Glass, Rh |
|
- | |||||
| 24 | 5304519138 | Housing, Auto Humidity |
|
$ 11.81 | |||||
| 25 | 5304519139 | Membrane Assembly, Humidity Ctrl, Auto |
|
$ 51.41 | |||||
| 26 | 5304519140 | Gasket, Crisper Cover |
|
$ 26.64 | |||||
| 27 | 5304524915 | Drawer Assembly, Crisper, Rh, W/rollers (Replaces: 5304519141) |
|
Immediately | $ 123.90 | ||||
| 28 | 5304519142 | Rail, Crisper, Rh Side |
|
$ 21.91 | |||||
| 30 | 5304519143 | Cover, Mullion Storage, Glass, Rh |
|
Immediately | $ 51.30 | ||||
| 31 | 5304532661 | Divider, Cripser Cover (Replaces: 5304519144) |
|
$ 67.41 | |||||
| 40 | 5304531743 | Guide, Filter Manifold (Replaces: 5304519145) |
|
$ 4.39 | |||||
| 41 | 5304533202 | Manifold, Water Filter, W/water Line, To Main Valve (Replaces: 5304519146) |
|
Immediately | $ 50.61 | ||||
| 42 | EPTWFU01 | Filter Assembly, Water (Replaces: 5304519147) |
|
Immediately | $ 75.59 | ||||
| 43 | 5304519148 | Holder, Water Filter |
|
$ 12.05 | |||||
| 44 | 5304519149 | Water Valve, Assembly, Double |
|
Immediately | $ 153.97 | ||||
| 45 | 5304525249 | Tube, Water Tank, To Double Valve (Replaces: 5304519150) |
|
Immediately | $ 132.12 | ||||
| 46 | 5304525249 | Tube, Water Filter, To Tank (Replaces: 242220122) |
|
Immediately | $ 132.12 | ||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 |
