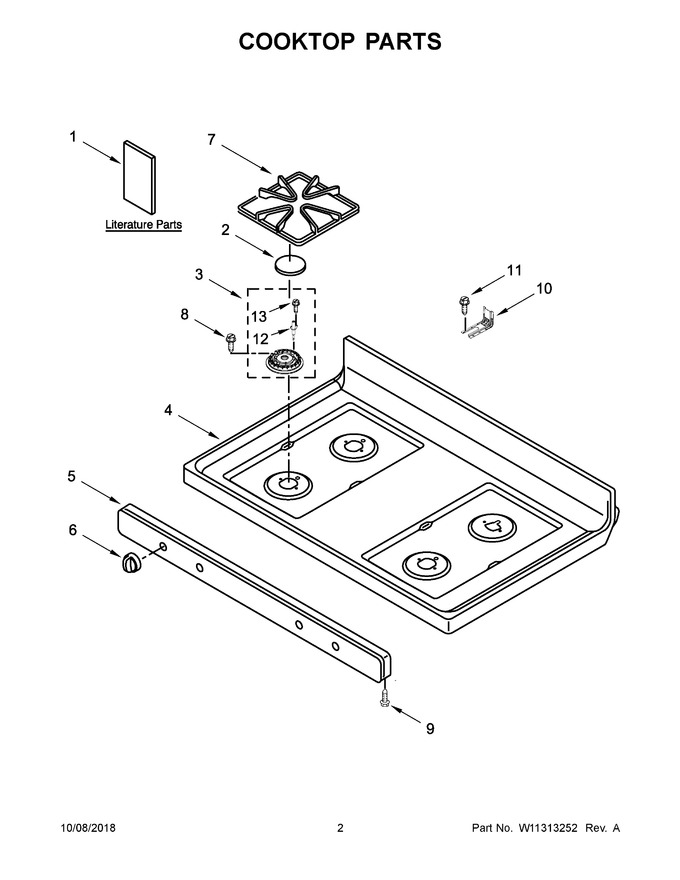

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11209976 | Instructions, Installation |
|
- | |||||
| 2 | W11229638 | Kit, Burner Cap (black) (Replaces: W11179394) |
|
$ 105.80 | |||||
| 3 | WPW10515455 | Assembly, Burner (17.5k) (left Front & Right Front) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 4 | W11133661 | Cooktop (black) |
|
- | |||||
| 5 | 8523855 | Panel, Manifold (black) |
|
$ 176.18 | |||||
| 6 | W11117407 | Knob, Control (black) (Replaces: W10844795) |
|
$ 79.22 | |||||
| 7 | WPW10268483 | Kit, Grate (black) (Replaces: 8053580) |
|
$ 140.02 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 11 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 12 | WPW10515459 | Electrode (left Front, Left Rear, Right Front) (Replaces: W11194809) |
|
Immediately | $ 43.77 | ||||
| 13 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 12A | WPW10515459 | Electrode (right Rear) (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 1A | W11209969 | Guide, Use And Care |
|
- | |||||
| 1B | W11210592 | Sheet, Tech |
|
- | |||||
| 1C | W11210599 | Diagram, Wiring |
|
- | |||||
| 3A | WPW10515454 | Assembly, Burner (9.5k) (left Rear) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 3B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 160.90 | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | W10842520 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
