01 - Cover Sheet

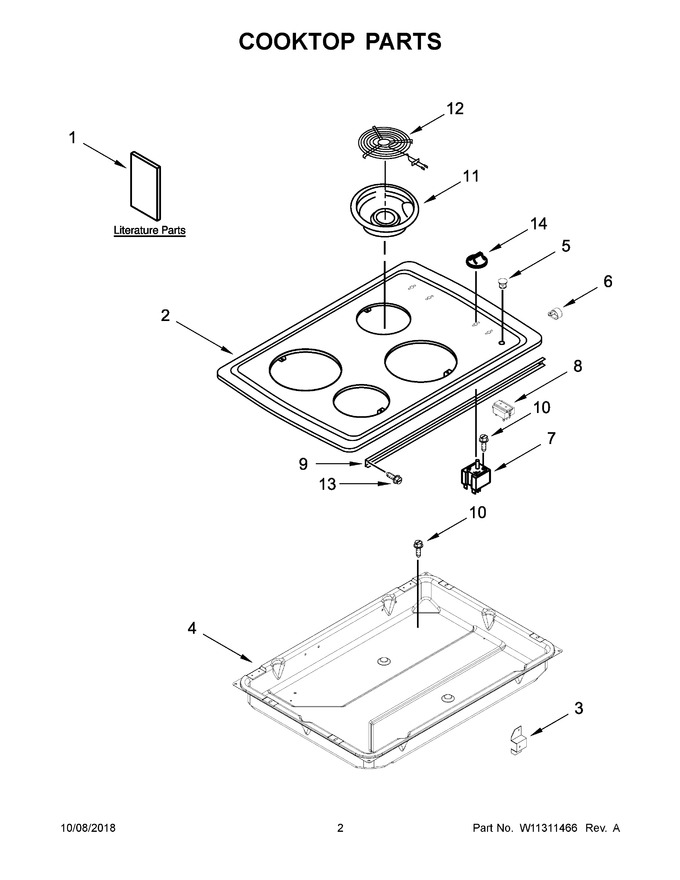

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10274252 | Instructions, Installation |
|
- | |||||
| 2 | WPW10457738 | Cooktop (black) (Replaces: W10457738) |
|
$ 354.15 | |||||
| 3 | N/P | Bracket, Main Top (not Serviced) |
|
- | |||||
| 4 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 5 | W11690131 | Lens, Indicator Lamp (Replaces: 7730P012-60) |
|
$ 7.07 | |||||
| 6 | 7111P002-60 | Clamp, Wire |
|
- | |||||
| 7 | WP7403P238-60 | Switch, Infinite (left Front & Right Rear) (Replaces: 7403P373-60) |
|
Immediately | $ 67.30 | ||||
| 8 | W10852510 | Light, Indicator (Replaces: 7407P102-60) |
|
$ 111.42 | |||||
| 9 | N/P | Brace, Top (not Serviced) |
|
- | |||||
| 10 | 3400855 | Screw (Replaces: W10734880) |
|
- | |||||
| 11 | WPW10196406 | Bowl, Drip Small (left Front & Right Rear) (Replaces: 7725P053-60) |
|
Immediately | $ 12.05 | ||||
| 12 | W11396792 | Element, Coil Heating (1300w) (left Front & Right Rear) (Replaces: W11199519) |
|
Immediately | $ 112.00 | ||||
| 13 | WP4159193 | Screw (Replaces: 7101P336-60) |
|
$ 4.56 | |||||
| 14 | WPW10454079 | Knob, Control (black) (Replaces: W10454079) |
|
$ 19.39 | |||||
| 11A | WPW10196405 | Bowl, Drip Large (left Rear & Right Front) (Replaces: 7725P054-60) |
|
Immediately | $ 15.56 | ||||
| 12A | W11396790 | Element, Coil Heating (2150w) (left Rear & Right Front) (Replaces: W11199518) |
|
Immediately | $ 113.84 | ||||
| 14A | W11170892 | Knob, Control (white) (Replaces: W10454082) |
|
- | |||||
| 1A | W11235896 | Guide, Use & Care |
|
- | |||||
| 1B | W10278688 | Wiring Diagram |
|
- | |||||
| 2A | WPW10457741 | Cooktop (white) (Replaces: W10457741) |
|
$ 301.61 | |||||
| 7A | WP7403P239-60 | Switch, Infinite (left Rear & Right Front) (Replaces: 7403P372-60) |
|
Immediately | $ 35.10 | ||||
| NI | W11206744 | Screw (for Element Wire Harness) (Replaces: 7101P394-60) |
|
$ 12.81 | |||||
| NI | 5155P758-60 | 18 Bk 125c |
|
- | |||||
| NI | WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 4.56 | |||||
| NI | W11171895 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11577436 | Grommet, Harness (Replaces: 8008P010-60) |
|
- | |||||
| NI | W11740803 | Harness, Element Wire (Replaces: W11190477) |
|
- |
