01 - Cover Sheet

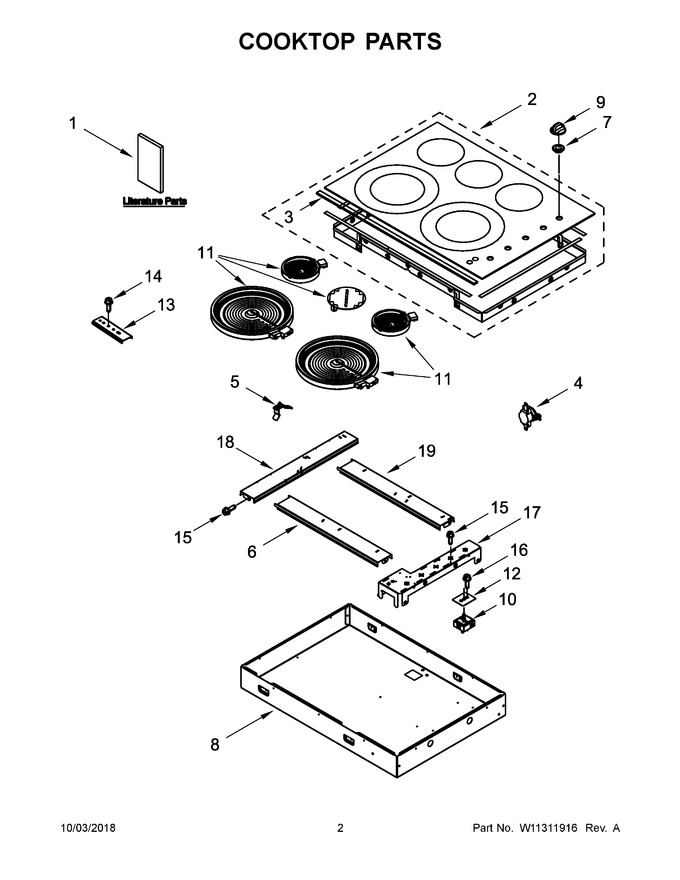

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11206696 | Instructions, Installation |
|
- | |||||
| 2 | W11223307 | Cooktop (black) (Replaces: W11120977) |
|
$ 531.59 | |||||
| 3 | N/P | Trim, Front Stainless (not Serviced) |
|
- | |||||
| 4 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | W11302594 | Rail, Horizontal Front (Replaces: W11110714) |
|
- | |||||
| 7 | WPW10293874 | Grommet (black) (Replaces: W10293874) |
|
Immediately | $ 8.46 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11222048 | Knob, Control (black) (Replaces: W11130625) |
|
Immediately | $ 79.25 | ||||
| 10 | W10857622 | Switch, Infinite (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 239.88 | ||||
| 11 | W11517959 | Element (3000/1400w) (left Front & Right Front) (Replaces: W10275048) |
|
Immediately | $ 146.68 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 17 | W11302595 | Plate, Switch (Replaces: W11215835) |
|
$ 76.89 | |||||
| 18 | W11102042 | Rail, Vertical |
|
$ 20.38 | |||||
| 19 | W11302597 | Rail, Horizontal Rear (Replaces: W11106009) |
|
- | |||||
| 10A | W10911303 | Switch, Infinite (left Rear & Right Rear) (Replaces: W10578768) |
|
Immediately | $ 115.27 | ||||
| 10B | W10888698 | Switch, Warm Zone (center Rear) |
|
$ 146.93 | |||||
| 11A | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 11B | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11255746 | Guide, Use & Care |
|
- | |||||
| 1C | W11206667 | Diagram, Wiring |
|
- | |||||
| 2A | W11223309 | Cooktop (white) (Replaces: W11120979) |
|
$ 654.05 | |||||
| 2B | W11223311 | Cooktop (stainless) (Replaces: W11120978) |
|
$ 537.92 | |||||
| 7A | W10372006 | Grommet (grey) |
|
- | |||||
| 9A | W11222053 | Knob, Control (white) (Replaces: W11130629) |
|
$ 79.29 | |||||
| 9B | W11418244 | Knob, Control (stainless) (Replaces: W11130627) |
|
Immediately | $ 47.67 | ||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | WP74005233 | Screw (Replaces: 7101P520-60) |
|
$ 7.91 | |||||
| NI | W11111810 | Harness, Main |
|
$ 307.31 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 156.46 | ||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 | |||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 |
