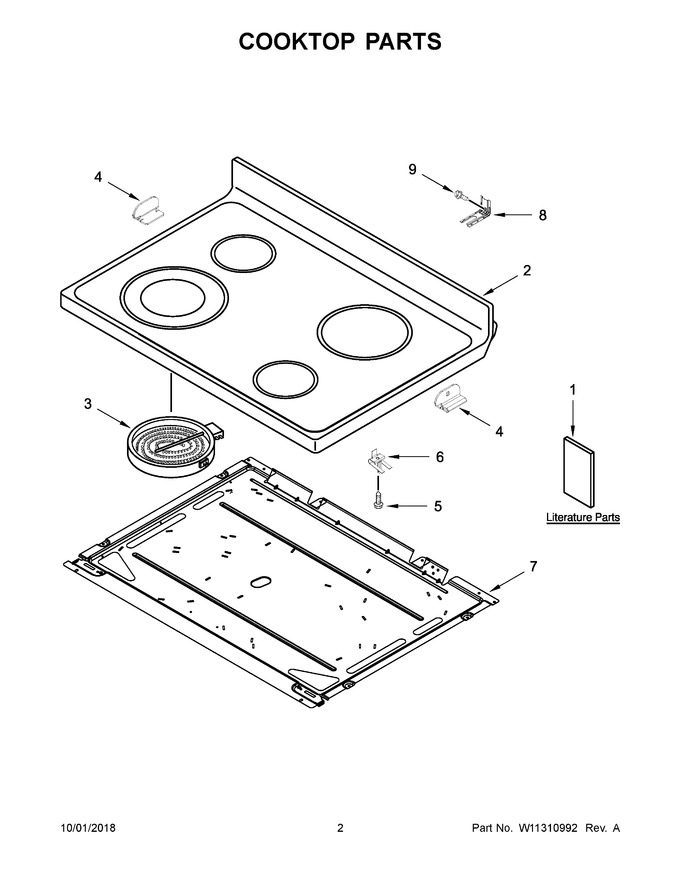

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11209964 | Use And Care Guide |
|
- | |||||
| 2 | W10908095 | Cooktop (black) (Replaces: W10853125) |
|
$ 729.70 | |||||
| 3 | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 146.68 | ||||
| 4 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 8 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 1A | W11209974 | Installation Instructions |
|
- | |||||
| 1B | W11210591 | Tech Sheet (english/french/spanish) |
|
- | |||||
| 1C | W11210597 | Diagram, Wiring |
|
- | |||||
| 3A | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: W10248261) |
|
Immediately | $ 225.62 | ||||
| 3B | WP8273993 | Element (1800w) (right Front) (Replaces: 8273993) |
|
Immediately | $ 287.73 | ||||
| 4A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11675846 | Harness, Cooktop (left) (Replaces: W11134603) |
|
$ 39.67 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11188500 | Harness, Wire (main) |
|
Immediately | $ 210.25 | ||||
| NI | W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 34.76 |
