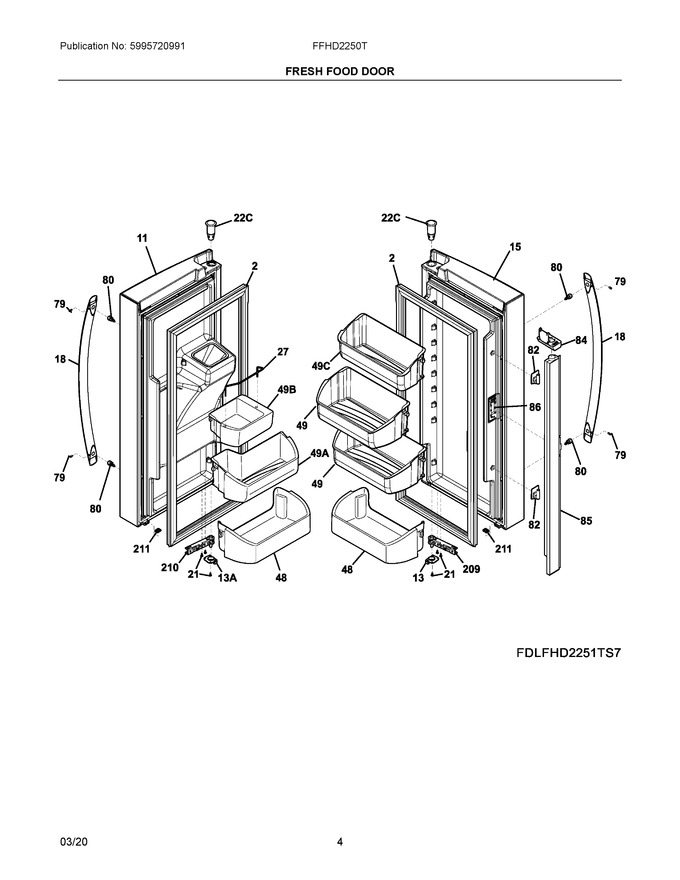

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-refr Door, Grey, Magnetic (Replaces: 241778303) |
|
Immediately | $ 99.87 | ||||
| 11 | 807460154 | Refrigerator Door, Complete, Black Stainless |
|
$ 515.31 | |||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 25.34 | |||||
| 15 | 807460153 | Door-refr, Blk Stnls 15, Complete, Black Stainless |
|
$ 557.51 | |||||
| 18 | 5304513386 | Handle, Door, Black Stainless (Replaces: 5304510340) |
|
$ 185.49 | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 27 | 241752703 | Retainer, Tall Bottle |
|
$ 61.51 | |||||
| 48 | 242071401 | Bin-door, Pseudo, White |
|
Immediately | $ 102.21 | ||||
| 49 | 242079701 | Bin-door, Gallon |
|
Immediately | $ 123.28 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 24.43 | ||||
| 84 | 808274201 | Guide-mullion, Magnet Cover, Flipper |
|
Immediately | $ 40.45 | ||||
| 85 | 242036308 | Flipper Mullion Assembly, Grey (Replaces: 242036305) |
|
$ 239.31 | |||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper |
|
Immediately | $ 45.83 | ||||
| 209 | 5304526201 | Closer Assembly, Door, Rh, Mechanical (Replaces: 5304508014) |
|
Immediately | $ 94.36 | ||||
| 210 | 5304526202 | Closer Assembly, Door, Lh, Mechanical (Replaces: 5304508015) |
|
Immediately | $ 109.27 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 13.48 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 25.28 | ||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 21.26 | ||||
| 49A | 242071301 | Bin-door, 2-liter |
|
Immediately | $ 113.78 | ||||
| 49B | 242011701 | Bin-door, Dispenser |
|
$ 57.09 | |||||
| 49C | 242079901 | Bin-door, 1/2 Gallon |
|
Immediately | $ 102.21 | ||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 4.21 | |||||
| NI | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NI | 5304521784 | Harness-wiring, Door (Replaces: 242040804) |
|
$ 68.25 | |||||
| NIA | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| NIA | 242068601 | Bumper, Flipper Mullion |
|
$ 16.01 | |||||
| NIA | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 23.71 | ||||
| NIB | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.83 | |||||
| NIB | 5304520993 | Harness-wiring, Flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 46.63 | ||||
| NIC | 240451503 | Screw (Replaces: 242064001) |
|
$ 4.21 |
