01 - Cover Sheet


02 - Cooktop Parts

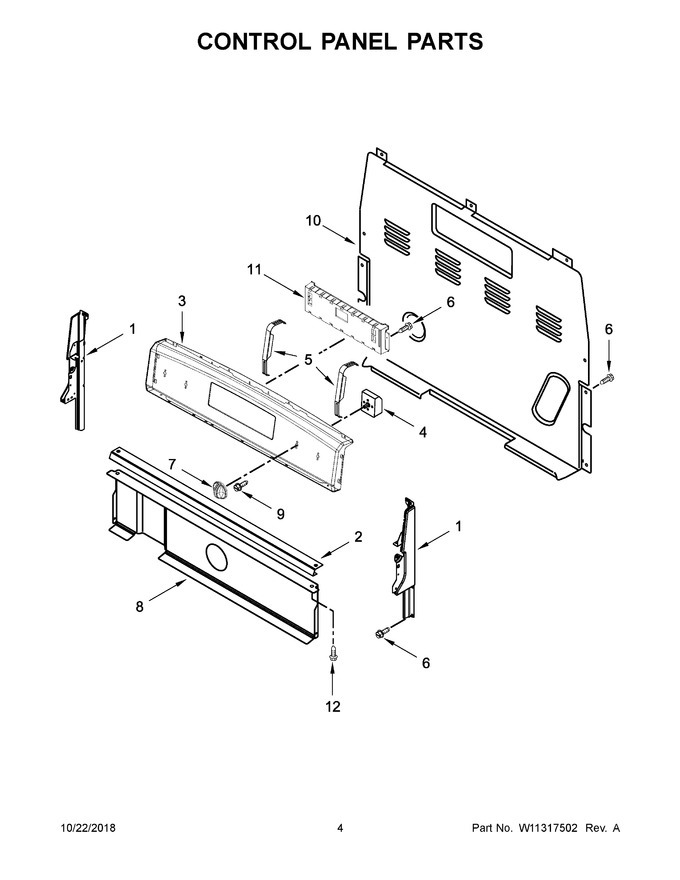

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	W10525121		Bracket, Console Mounting				$ 98.85
3	W11252790		Panel, Console (black)   (Replaces: W11157020)				$ 347.04
4	WPW10434452		Switch, Infinite (dual) (left Front)   (Replaces: W10434452)			Immediately	$ 140.84
5	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
6	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
7	W11210997		Knobs (black)   (Replaces: W10844801)				$ 79.16
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W11536796		Control, Electronic (lcx) (black)   (Replaces: W11204489)			Immediately	$ 364.26
12	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11A	W11536797		Control, Electronic (lcx) (white)   (Replaces: W11204490)			Immediately	$ 364.22
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
3A	W11247314		Panel, Console (white)   (Replaces: W11157019)				$ 359.18
4A	5500-287		Switch, Infinite (left Rear And Right Front)   (Replaces: 3148951)			Immediately	$ 52.39
4B	5500-287		Switch, Infinite (green) (right Rear)   (Replaces: 3148953)			Immediately	$ 52.39
7A	W11188750		Knobs (white)   (Replaces: W10844800)				$ 21.54
