SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)

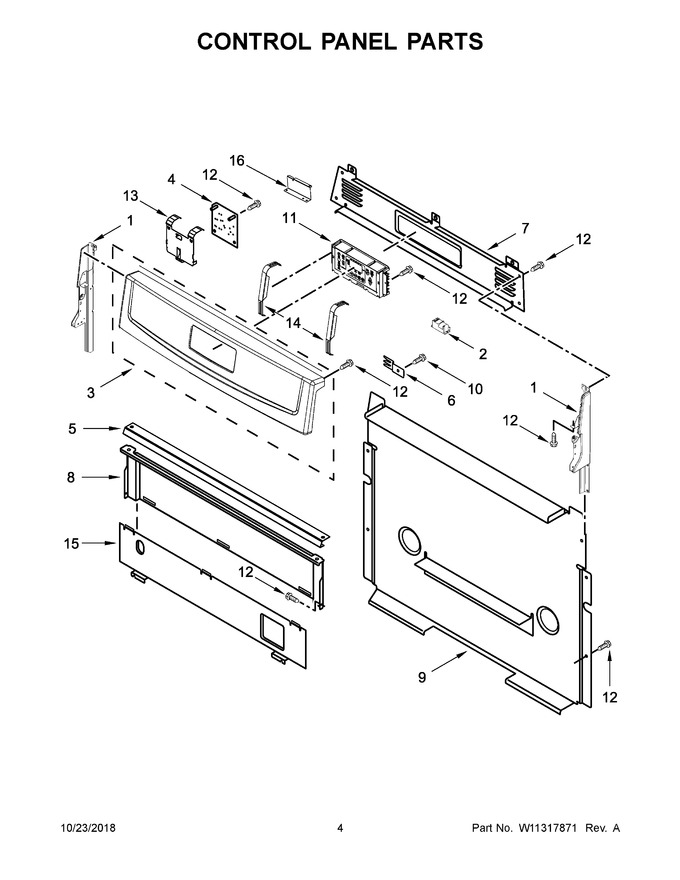

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 322.41
3	W11219672		Panel, Console (black)   (Replaces: W11157105)		Appelez-nous	-
4	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 218.43
5	W10516123		Bracket, Console Mounting		Appelez-nous	-
6	8523412		Bracket, Rear Cooktop				$ 167.90
7	W10198745		Cover, Upper				$ 128.90
8	W10192841		Shield, Heat				$ 106.69
9	W10184370		Cover, Back		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W11314380		Control, Electronic (lcx) (black)   (Replaces: W11204502)				$ 503.22
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	W10516463		Bracket, Dsi		Appelez-nous	-
14	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
15	8053505		Shield, Heat				$ 165.89
16	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17

    View Diagram in Separate Window       Print Part List
