SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

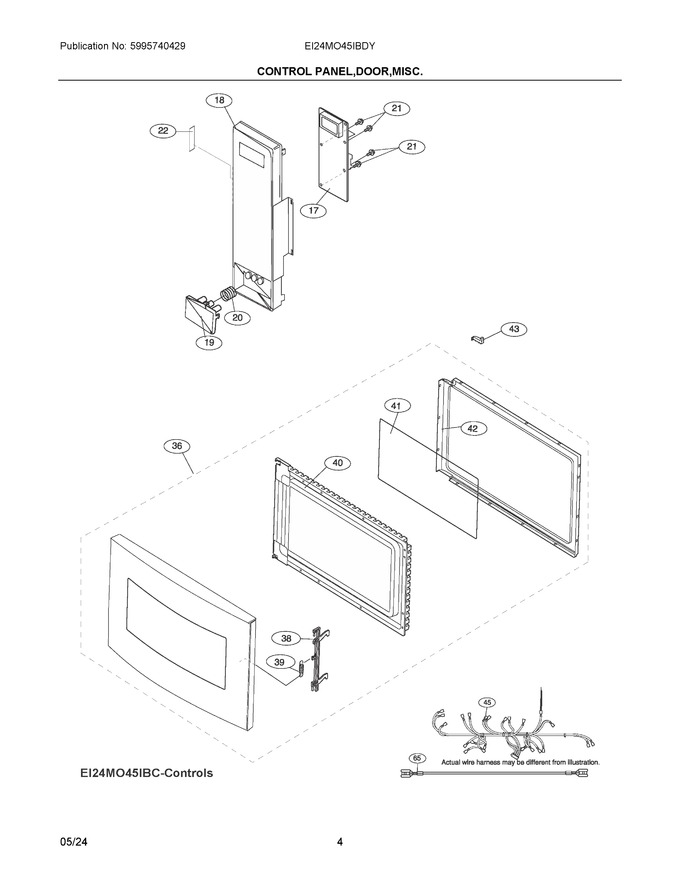

03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5304516274		Control Board, Printed Circuit				$ 312.47
18	5304513655		Control Panel Assy				$ 415.64
19	5304464196		Push Button, Door, Black				$ 79.54
20	5304507616		Spring, Door Button		Appelez-nous	-
21	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
22	5304468232		Label, User Caution		Appelez-nous	-
36	5304472254		Door Assy, Complete, Black				$ 475.65
38	5304441893		Latch, Door			Immediately	$ 54.34
39	5304440316		Spring, Door Latch			Immediately	$ 67.78
40	5304440857		Panel, Inner Door, Black				$ 213.66
41	5304440860		Seal, Door, Film				$ 63.09
42	5304440861		Choke Cover, Inner Door				$ 81.13
43	5304442145		Door Stop		Appelez-nous	-
45	5304516275		Wiring Harness, Main		Appelez-nous	-
65	5304493157		Wire, High Voltage, B		Appelez-nous	-
