SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

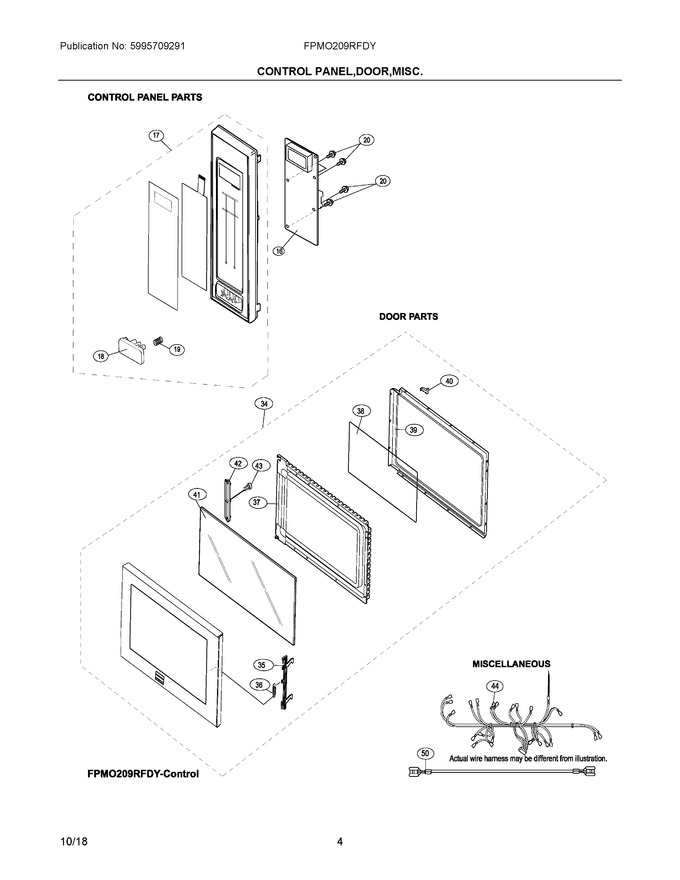

03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5304516276		Control Board, Printed Circuit				$ 307.65
17	5304503438		Control Panel Assy, W/touch Pad				$ 421.43
18	5304462915		Push Button, Door, Stainless				$ 110.85
19	5304440831		Spring, Door Button				$ 22.54
20	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
34	5304503440		Door Assy, Complete, Stainless				$ 447.30
35	5304441893		Latch, Door			Immediately	$ 54.34
36	5304440316		Spring, Door Latch			Immediately	$ 67.78
37	5304440857		Panel, Inner Door, Black				$ 213.66
38	5304440860		Seal, Door, Film				$ 63.09
39	5304440861		Choke Cover, Inner Door				$ 81.13
40	5304442145		Door Stop		Appelez-nous	-
41	5304503441		Panel, Door Glass, Black		Appelez-nous	-
42	5304440862		Stop, Door Glass		Appelez-nous	-
43	5304452259		Screw		Appelez-nous	-
44	5304516269		Wiring Harness, Main		Appelez-nous	-
50	5304503442		Wire, High Voltage-a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
