Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11233380 Assembly, Fan   (Replaces: W10769486) In-Stock Immediately $ 303.77

2 W10370680 Fitting, Drain Special Order $ 36.03

3 W11235099 Cover, Led Side   (Replaces: W10816886) Appelez-nous -
4 W11233381 Assembly, Led Strip (left Hand)   (Replaces: W10826246) Special Order $ 215.97

5 W11247676 Evaporator   (Replaces: W10830693) Special Order $ 379.01

6 W10225833 Grommet, Motor Special Order $ 39.70

7 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 6.95

8 W11247681 Cover, Led Top   (Replaces: W10816894) Appelez-nous -
9 W11247682 Strip, Top Led   (Replaces: W10826250) In-Stock Immediately $ 193.31

10 W11233384 Assemby, Light Strip   (Replaces: W10914639) In-Stock Immediately $ 196.09

11 W11235114 Assembly, Air Tower Gasket (includes Air Tower)   (Replaces: W11176554) Special Order $ 93.27

12 W11235115 Assembly, Duct Damper (includes Heater)   (Replaces: W10872906) In-Stock Immediately $ 209.18

13 W11036131 Assembly, Air Tower Bracket (includes Rubber Rivets, Washers And Screws) (upper) Appelez-nous -
14 W11247698 Wall, False   (Replaces: W10816933) Appelez-nous -
15 W11235116 Duct, Deli   (Replaces: W10816934) Special Order $ 98.77

16 W11235118 Gasket, Deli Duct   (Replaces: W10916552) Appelez-nous -
17 W11247699 Assembly, Duct (includes Damper)   (Replaces: W10863620) Appelez-nous -
18 W11247700 Harness, Damper   (Replaces: W10810632) Appelez-nous -
19 W11404240 Assembly, User Interface   (Replaces: W10826266) Special Order $ 408.49

20 W11247702 Grille, Air Return   (Replaces: W10847993) Appelez-nous -
21 N/P Liner (not A Serviceable Part) Appelez-nous -
22 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.86

23 W11235123 Assembly, Air Tower Panel   (Replaces: W10816938) Special Order $ 361.61

24 W11603843 Reservoir, Water   (Replaces: W11049326) Special Order $ 131.28

25 W11247958 Assembly, Dispenser Cover   (Replaces: W10880332) Special Order $ 114.94

26 WP12575502 Switch, Limit   (Replaces: 12575502) In-Stock Immediately $ 48.74

27 W11247961 Valve, Single Solenoid   (Replaces: W11135656) In-Stock Immediately $ 203.45

28 W11248065 Tube, Dispenser Water   (Replaces: W11233653) In-Stock Immediately $ 121.08

29 W11234825 Ladder, Shelf (includes Screw Guide) (left Hand)   (Replaces: W10905671) In-Stock Immediately $ 147.57

30 W11234826 Thermistor   (Replaces: W11084854) In-Stock Immediately $ 120.37

31 W11235125 Cover, Thermistor   (Replaces: W10912104) Special Order $ 102.95

32 W11234828 Screw (black)   (Replaces: W10894079) Appelez-nous -
33 W11232776 Heater, Defrost   (Replaces: W10868621) In-Stock Immediately $ 145.49

34 W11553819 Insulation, Sound Deadening   (Replaces: 2169104) In-Stock Immediately $ 14.07

35 W11579165 Tube, Dispenser Water (water Valve)   (Replaces: W11233591) In-Stock Immediately $ 91.37

36 W10602825 Assembly, Fuse Jumper Wire Special Order $ 43.00

37 W11307273 Crossbar, Control (upper)   (Replaces: W10816927) Special Order $ 144.51

38 W11299624 Harness, Evaporator (includes Thermistor)   (Replaces: W10810633) In-Stock Immediately $ 143.43

39 W11308214 Assembly, Evaporator Cover (includes Insulation)   (Replaces: W10876961) Appelez-nous -
40 W11299623 Cover, Evaporator Panel U Shape   (Replaces: W10895218) Appelez-nous -
41 W11299416 Cover, Evaporator Insulation   (Replaces: W10780861) Appelez-nous -
42 W11299413 Gasket, Evaporator Panel   (Replaces: W10895214) Appelez-nous -
43 W11308215 Cover, Manifold   (Replaces: W10816948) Appelez-nous -
44 W11308216 Assembly, Evaporator Bypass Block (includes Foil)   (Replaces: W10881370) Appelez-nous -
45 W11308228 Block, Evaporator Bypass (left Hand)   (Replaces: W11216922) Appelez-nous -
13A W11036132 Assembly, Air Tower Bracket (includes Rubber Rivets, Washers And Screws) (lower) Appelez-nous -
29A W11234551 Ladder, Shelf (includes Screw Guide) (right Hand)   (Replaces: W10905672) In-Stock Immediately $ 147.57

37A W11307274 Crossbar, Control (lower)   (Replaces: W10887670) Special Order $ 143.81

45A W11308229 Block, Evaporator Bypass (right Hand)   (Replaces: W11216921) Appelez-nous -
4A W11233382 Assembly, Led Strip (right Hand)   (Replaces: W10901633) Special Order $ 286.93


    View Diagram in Separate Window     Print Icon   Print Part List

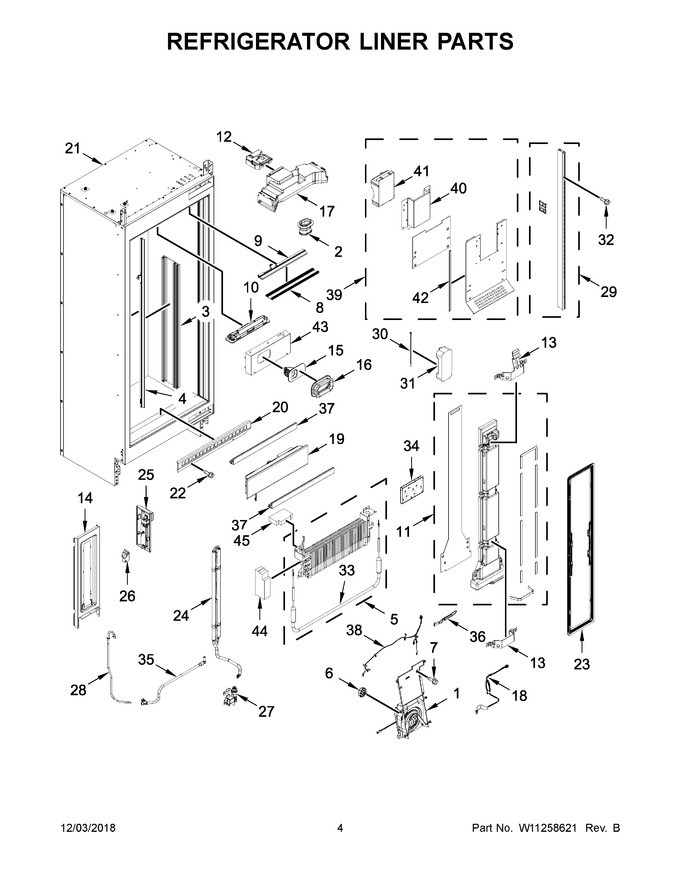

Diagram for JBRFL36IGX00
