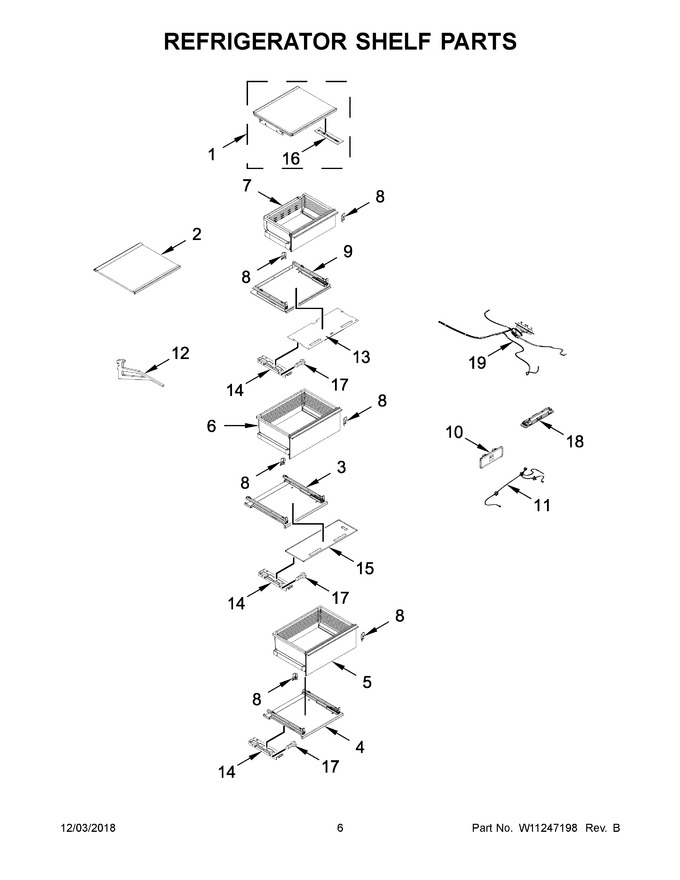

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11247962		Assembly, Deli Shelf   (Replaces: W10824596)		Appelez-nous	-
2	W11247964		Assembly, Shelf   (Replaces: W11032684)				$ 386.38
3	W11247967		Assembly, Upper Crisper Slide Support   (Replaces: W10824122)				$ 313.74
4	W11247970		Assembly, Lower Crisper Slide Support   (Replaces: W10821603)		Appelez-nous	-
5	W11248030		Assembly, Bottom Crisper Pan   (Replaces: W11022756)		Appelez-nous	-
6	W11248032		Assembly, Top Crisper Pan   (Replaces: W10816835)		Appelez-nous	-
7	W11248041		Assembly, Deli   (Replaces: W10816760)		Appelez-nous	-
8	W11235126		Clip, Retainer (left Hand)   (Replaces: W10856559)		Appelez-nous	-
9	W11248033		Assembly, Deli Slide Support   (Replaces: W10824235)		Appelez-nous	-
10	W11234857		Housing, Crisper Thermistor   (Replaces: W11047771)				$ 246.30
11	W11234859		Harness, Crisper Led (includes Thermistor)   (Replaces: W10909590)				$ 152.41
12	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 51.64
13	W11308232		Panel, Mullion   (Replaces: W10816904)			Immediately	$ 68.03
14	W11302039		Bracket, Support   (Replaces: W11045476)		Appelez-nous	-
15	W11308233		Plate, Crisper Support Led   (Replaces: W10902254)		Appelez-nous	-
16	W11265008		Thermistor (includes Cover)			Immediately	$ 129.80
17	W11247538		Screw   (Replaces: W10882791)			Immediately	$ 14.75
18	W11233384		Assemby, Light Strip   (Replaces: W10914639)			Immediately	$ 205.89
19	W10818566		Harness, Mullion		Appelez-nous	-
8A	W11235128		Clip, Retainer (right Hand)   (Replaces: W10856558)		Appelez-nous	-
