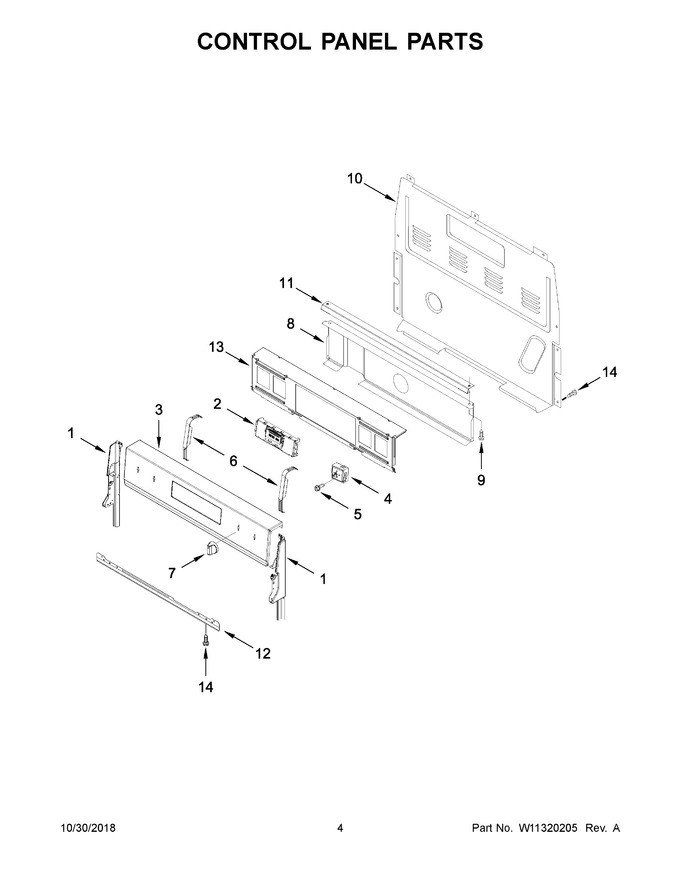

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 347.77
2	W11528249		Control, Electronic (lcx) (black)   (Replaces: W11204529)			Immediately	$ 292.04
3	W11182819		Console, Assembly (black)   (Replaces: W11089991)				$ 482.30
4	WPW10434452		Switch, Infinite (dual) (left Front And Right Front)   (Replaces: W10434452)			Immediately	$ 140.84
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W10856361		Bracket, Control		Appelez-nous	-
7	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 80.02
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W11443964		Bracket, Eye Brow (black)   (Replaces: W11051312)				$ 222.43
13	W10901802		Panel, Backer				$ 96.79
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12A	W11051311		Bracket, Eye Brow (white)				$ 92.64
1A	W11213292		Endcap (black (right))				$ 71.65
1B	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 104.70
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 104.70
2A	W11546095		Control, Electronic (lcx) (white)   (Replaces: W11204530)			Immediately	$ 366.74
3A	W11182818		Console, Assembly (white)   (Replaces: W11089992)				$ 522.66
4A	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
7A	W11158173		Knob (white)   (Replaces: W11022720)			Immediately	$ 21.54

    View Diagram in Separate Window       Print Part List
