SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

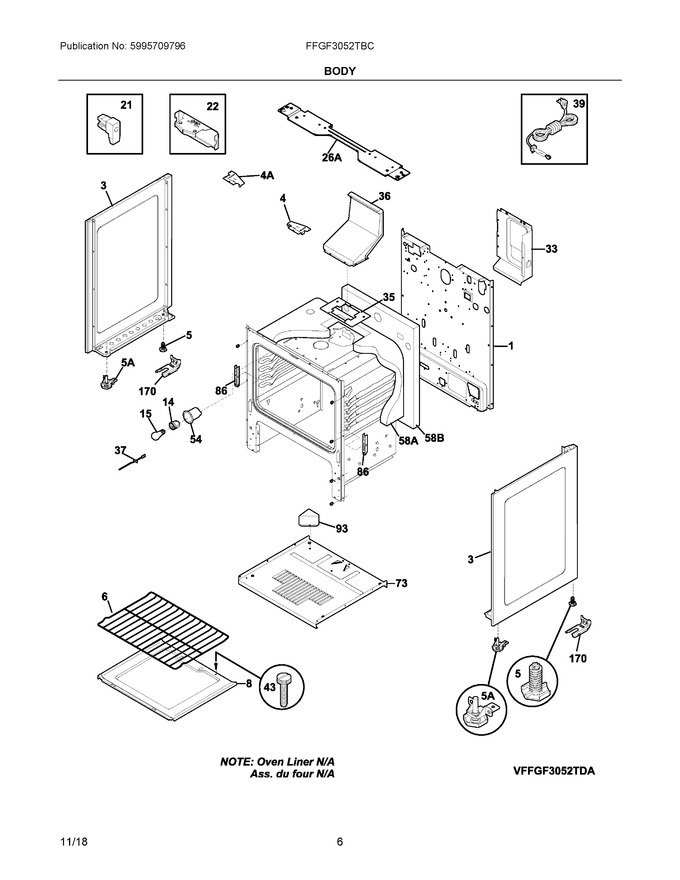

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029419		Panel, Main Back		Appelez-nous	-
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400118)			Immediately	$ 149.65
4	316605400		Bracket-maintop, Rh		Appelez-nous	-
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	316067902		Rack, Oven, (2)			Immediately	$ 114.56
8	316495901		Panel, Oven Bottom				$ 134.40
14	316116400		Receptacle, Oven Light			Immediately	$ 62.33
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 22.75
21	316408000		Clip, Bodyside				$ 20.22
22	316286300		Bracket-bodyside, (2)				$ 19.69
33	316055600		Shield, Spark Module, Galv Steel		Appelez-nous	-
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 13.48
36	316208903		Flue		Appelez-nous	-
37	316233903		Probe, Oven Temp			Immediately	$ 63.65
39	5304534377		Cord, Electric Power   (Replaces: 5304515659)				$ 29.83
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 11.03
54	5303271606		Housing, Oven Light		Appelez-nous	-
73	316109902		Base, Low Broil				$ 131.25
86	316441300		Receptacle, Hinge				$ 24.41
93	316110000		Shield, Ignitor, Metal		Appelez-nous	-
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 21.01
26A	316498200		Bracket-support, Chassis, Aluminum				$ 58.14
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400119)			Immediately	$ 148.81
4A	316605401		Bracket-maintop, Lh		Appelez-nous	-
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	316054202		Insulation, 1", Oven Back				$ 85.10
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316407200)			Immediately	$ 16.76
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 13.39
NI	5304503371		Harness, Wiring, Main				$ 124.71
NI	5304491650		Block, Stability, Concrete		Appelez-nous	-
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	316064600		Support, Oven Bottom				$ 21.06
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 14.32
NIC	316541700		Template, Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
