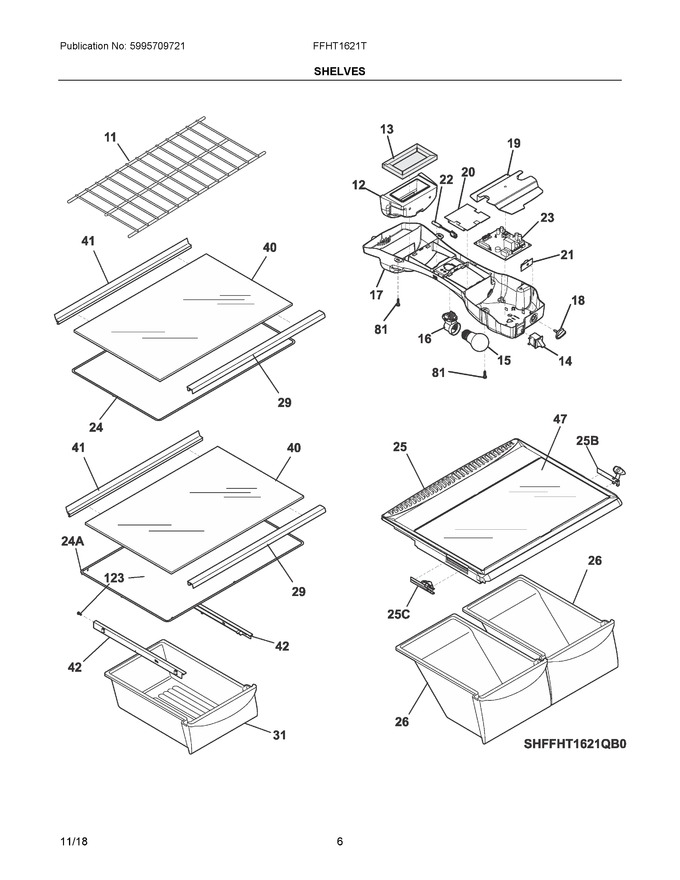

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358007 | Shelf, Freezer |
|
Immediately | $ 96.86 | ||||
| 12 | 242228801 | Diffuser, Air, Control Box |
|
$ 38.77 | |||||
| 13 | 242240601 | Gasket, Air Diffuser |
|
$ 23.16 | |||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket, Light (Replaces: 242081801) |
|
$ 80.75 | |||||
| 17 | 242216701 | Control Box |
|
$ 258.69 | |||||
| 18 | 242217001 | Knob, Cold Control |
|
$ 251.11 | |||||
| 19 | 242216901 | Cover, Control Housing |
|
$ 0.79 | |||||
| 20 | 242228701 | Shield, Heat |
|
$ 17.25 | |||||
| 21 | 5304501856 | Board, User Interface, Potentiometer (Replaces: 242231601) |
|
Immediately | $ 852.18 | ||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.73 | ||||
| 23 | 5304503163 | Board, Main Control, Erf1500 |
|
Immediately | $ 299.57 | ||||
| 24 | 240372404 | Frame, Sliding Shelf, Full Width (Replaces: 240372401) |
|
Immediately | $ 114.60 | ||||
| 25 | 5304497604 | Cover, Crisper Pans, W/2 Humid Cntls |
|
Immediately | $ 120.34 | ||||
| 26 | 240364503 | Pan, Crisper, (2) |
|
Immediately | $ 162.81 | ||||
| 29 | 240357703 | Trim, Shelf, Front |
|
Immediately | $ 70.88 | ||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear |
|
Immediately | $ 150.86 | ||||
| 40 | 240350619 | Panel, Glass Shelf, Full Width |
|
$ 174.74 | |||||
| 41 | 240561501 | Trim-shelf, 22.16", Rear |
|
Immediately | $ 49.61 | ||||
| 42 | 240530601 | Track, Meat Pan Hanger, Lh |
|
Immediately | $ 73.31 | ||||
| 47 | 242087903 | Glass-shelf, Crisper Cover |
|
Immediately | $ 129.10 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw, Hanger/rlr Mtg, 8-10 X 7/16 |
|
$ 16.54 | |||||
| 24A | 240372404 | Frame, Sliding Shelf, Full Width, W/hanger Tabs |
|
Immediately | $ 114.60 | ||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 13.39 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 53.09 | |||||
| 42A | 240530701 | Track, Meat Pan Hanger, Rh |
|
Immediately | $ 73.31 | ||||
| NI | 5304511466 | Label-energy E-star |
|
- | |||||
| NIA | 241705801 | Spacer-shelf |
|
$ 7.88 | |||||
| NIA | 242213801 | Harness Assembly, Wiring, Control Box |
|
$ 88.47 | |||||
| NIB | 5303299664 | Spacer, Shelf |
|
$ 26.78 |
