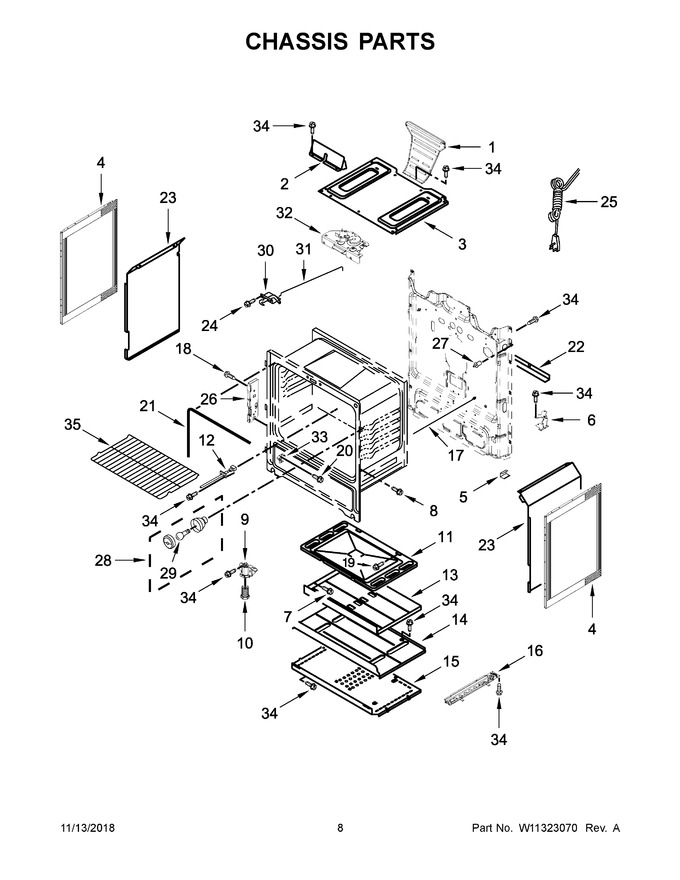

05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Box, Flue   (Replaces: W10153186)				$ 150.29
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 70.96
3	W11379351		Box-burner, Gas Sealed   (Replaces: 8273036)				$ 61.13
4	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 164.83
5	W10137382		Clip, Panel			Immediately	$ 46.11
6	8523249		Bracket, Manifold		Appelez-nous	-
7	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.02
8	W11169708		Screw   (Replaces: 3196560)				$ 13.36
9	WPW10341186		Assembly, Front Foot   (Replaces: W10341186)			Immediately	$ 32.59
10	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.85
11	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 220.05
12	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
13	8053967		Baffle, Burner Oven				$ 300.91
14	8053969		Shield, Heat				$ 107.66
15	8053968		Shield, Lower		Appelez-nous	-
16	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 59.68
17	9757239		Rod, Door Switch				$ 91.78
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
19	W10379120		Screw		Appelez-nous	-
20	W11684512		Screw   (Replaces: 3400080)				$ 14.10
21	W11542153		Seal, Door   (Replaces: W10658354)			Immediately	$ 50.20
22	W10435470		Brace, Main Back				$ 77.85
23	9761449		Retainer, Insulation (left)				$ 317.63
24	W11169708		Screw   (Replaces: 3196560)				$ 13.36
25	W11582239		Cord, Power   (Replaces: W10624590)				$ 16.75
26	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
27	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 144.44
28	W11594027		Assembly, Light   (Replaces: W11175594)			Immediately	$ 87.01
29	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
30	WP9761013		Assembly, Door Latch (front)   (Replaces: 9761013)				$ 244.15
31	W10078370		Rod, Push Latch				$ 90.70
32	WPW10107820		Assembly, Door Latch (rear)   (Replaces: W10107820)				$ 294.81
33	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 18.38
34	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
35	W11520287		Rack, Oven   (Replaces: W10268578)			Immediately	$ 46.84
16A	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 59.68
23A	9761448		Retainer, Insulation (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11688737		Insulation, Back   (Replaces: W10180437)				$ 116.89
NI	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 117.75
