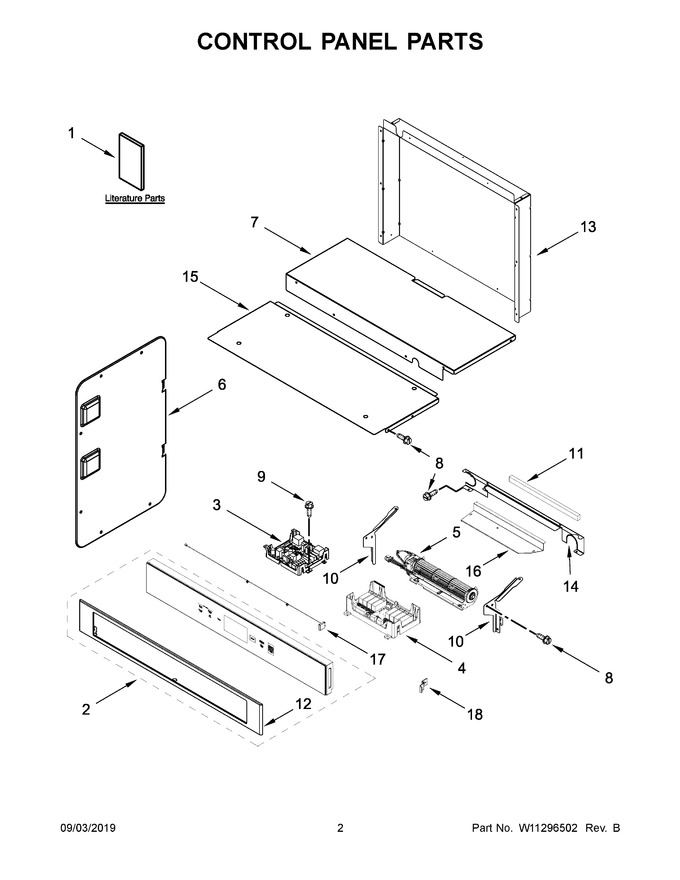

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11047062 | Instructions, Installation |
|
- | |||||
| 2 | W11396218 | Assembly, Control Panel (stainless) (Replaces: W11317254) |
|
- | |||||
| 3 | W11294388 | Control (copernicus) (Replaces: W10850871) |
|
$ 474.19 | |||||
| 4 | W11294389 | Appliance Manager, Expansion (Replaces: W10890118) |
|
- | |||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 6 | W10655467 | Chassis, Combo Side |
|
$ 83.02 | |||||
| 7 | W10588732 | Chassis, Cover Top Back 30 |
|
$ 225.86 | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10588740 | Skin, Control Panel (stainless) |
|
$ 214.05 | |||||
| 13 | W11037653 | Cover, Combo Chassis Back Duct (with Hole) |
|
$ 72.05 | |||||
| 14 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 15 | W10318158 | Chassis, Cover Top Front 30 |
|
- | |||||
| 16 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 17 | W11537624 | Antenna And Module, Wifi (Replaces: W11222874) |
|
$ 106.06 | |||||
| 18 | W10347649 | Spacers, Front |
|
$ 15.02 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12A | W10776407 | Skin, Control Panel (black Stainless) |
|
$ 285.61 | |||||
| 1A | W10903389 | Guide, Use & Care |
|
- | |||||
| 1B | W10903390 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1C | W11040102 | Guide, Internet Connectivity |
|
- | |||||
| 1D | W10903420 | Diagram, Wiring |
|
- | |||||
| 2A | W11396718 | Assembly, Control Panel (black Stainless) (Replaces: W11317257) |
|
- | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 8.30 | |||||
| NI | W11356991 | Harness, Ground Console Combo (Replaces: W11233569) |
|
- | |||||
| NI | W11233537 | Jumper Harness, Communication |
|
$ 191.71 | |||||
| NI | W10874060 | Harness, Inverter |
|
$ 148.71 | |||||
| NI | W11356990 | Harness, Communication (Replaces: W11233529) |
|
$ 224.43 | |||||
| NI | W11219538 | Harness, Door Latch |
|
$ 90.67 | |||||
| NI | W11136143 | Harness, Signal |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11356124 | Harness, Main |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | WPW10017410 | Fuse, Time Delay (Replaces: W10017410) |
|
Immediately | $ 22.23 | ||||
| NI | 4454949 | Holder, Fuse |
|
$ 95.24 | |||||
| NI | W10760039 | Bag, Hardware (Replaces: W10431303) |
|
$ 12.17 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 |
