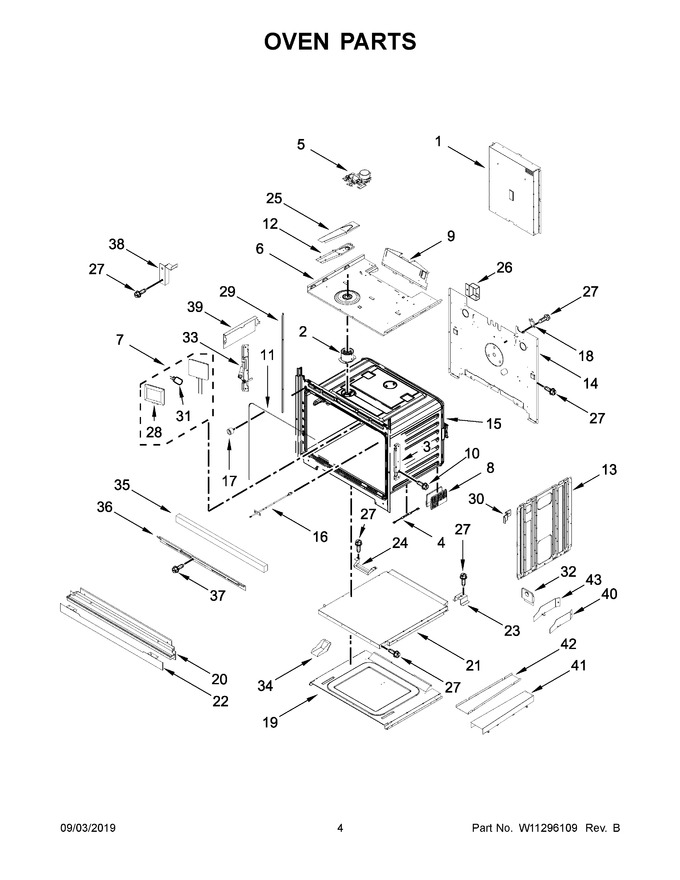

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318196		Duct, Chassis Back				$ 218.89
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11613828		Receiver, Hinge   (Replaces: W11044775)			Immediately	$ 57.49
4	W11292538		Spacer, Base   (Replaces: W11135510)		Appelez-nous	-
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 306.46
6	W10904158		Top, Chassis		Appelez-nous	-
7	W11292252		Assembly, Oven Light   (Replaces: W11205574)			Immediately	$ 107.48
8	W10821321		Foot, Base   (Replaces: W10618101)				$ 33.51
9	W10904163		Deflector, Blower			Immediately	$ 169.79
10	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
11	W11623080		Gasket   (Replaces: W10739089)			Immediately	$ 72.35
12	W11050173		Base, Vent Exhaust		Appelez-nous	-
13	W10663556		Side, Chassis (left)		Appelez-nous	-
14	W11292548		Back, Chassis   (Replaces: W10904161)		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11290976		Probe, Sensor   (Replaces: W11208463)				$ 194.82
17	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11238787		Base, Chassis				$ 349.65
19	W11292299		Base, Chassis   (Replaces: W11234898)		Appelez-nous	-
20	W11348369		Assembly, Bottom Vent (stainless)		Appelez-nous	-
20	W11294477		Assembly, Bottom Vent (stainless)   (Replaces: W10903250)		Appelez-nous	-
21	W11225075		Chassis, Bottom Duct		Appelez-nous	-
22	WPW10327377		Trim, Bottom Vent (stainless)   (Replaces: W10327377)				$ 180.08
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	W11050172		Cover, Vent Exhaust		Appelez-nous	-
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
29	W10536160		Cover, Side Trim (black (left))   (Replaces: W10344481)			Immediately	$ 42.13
30	W10834501		Spacers, Front				$ 15.94
31	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
32	W11295343		Gasket, Silicone Foam (652mm)   (Replaces: W11218823)		Appelez-nous	-
32	W10834286		Spacer, Center				$ 23.10
33	W11045086		Receiver, Slow Close Hinge			Immediately	$ 128.82
34	W11096843		Deflector, Back Duct		Appelez-nous	-
35	W11218824		Gasket, Silicone Foam (608mm)		Appelez-nous	-
35	W11226313		Gasket, Rubber (652mm)   (Replaces: W11162062)				$ 24.40
36	W10283036		Vent, Top 30				$ 63.87
37	W11193480		Screw   (Replaces: W10607120)				$ 14.72
38	W10863234		Bracket, Side Cover (left)		Appelez-nous	-
39	W11034940		Shield, Slow Close Hinge				$ 84.98
40	W11124807		Angle, Bottom Duct Corner (rh)		Appelez-nous	-
40	W10846765		Shield, Outer		Appelez-nous	-
41	W11050177		Flue, Top		Appelez-nous	-
42	W11050176		Flue, Bottom		Appelez-nous	-
43	W11124808		Angle, Bottom Duct Corner (lh)		Appelez-nous	-
44	W11124807		Angle, Bottom Duct Corner (rh)		Appelez-nous	-
45	W11226313		Gasket, Rubber (652mm)   (Replaces: W11162062)				$ 24.40
13A	W10318190		Side, Chassis (right)				$ 117.20
20A	W11295342		Assembly, Bottom Vent (black Stainless)   (Replaces: W10903251)		Appelez-nous	-
20A	W11348370		Assembly, Bottom Vent (black Stainless)		Appelez-nous	-
22A	WPW10351236		Trim, Bottom Vent (black)   (Replaces: W10351236)			Immediately	$ 151.96
29A	W10536160		Cover, Side Trim (black (right))   (Replaces: W10344480)			Immediately	$ 42.13
38A	W10863233		Bracket, Side Cover (right)		Appelez-nous	-
NI	W11292324		Insulation, Cavity   (Replaces: W10917743)		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 124.87
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11685004		Insulation, Control Knob   (Replaces: W10464568)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
