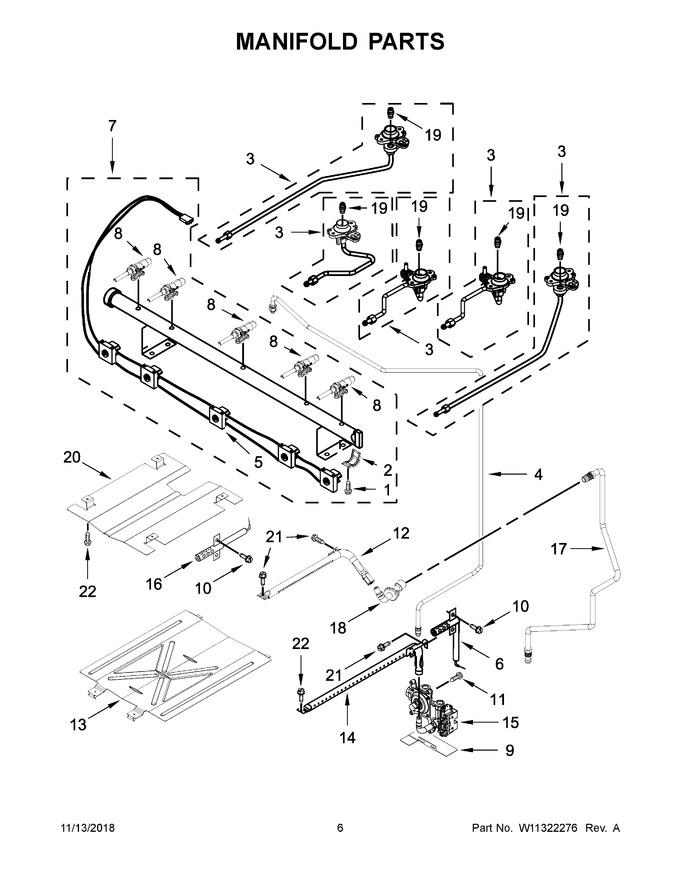

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.97
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 21.67
3	W11197500		Assembly, Orifice Holder (15k) (left Front)   (Replaces: W10473936)				$ 106.53
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 146.27
5	W11233074		Harness, Igniter (includes Switches)   (Replaces: W10811691)				$ 181.24
6	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 41.01
7	W10859728		Assembly, Manifold				$ 338.78
8	WPW10279615		Valve, Gas (left Front & Right Front)   (Replaces: W10279615)				$ 246.58
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 13.59
11	WP3400016		Screw   (Replaces: 3400016)				$ 7.95
12	WP8054078		Burner, Broiler   (Replaces: 8054078)				$ 227.96
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 241.45
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 215.30
15	WPW10602001		Regulator   (Replaces: W10602001)				$ 324.73
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10420040		Tube, Broiler Supply				$ 185.29
18	W10592836		Fitting, Broiler				$ 103.10
19	WPW10347414		Orifice (15k) (left Front & Right Front)   (Replaces: W10347414)				$ 86.19
20	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
21	3196265		Screw		Appelez-nous	-
22	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.02
19A	WPW10170508		Orifice, Natural (9.5k) (left Rear)   (Replaces: W10170508)				$ 90.68
19B	WPW10170506		Orifice, Natural (5k) (right Rear)   (Replaces: W10170506)				$ 93.19
19C	W10657947		Orifice (8k) (center)				$ 21.33
3A	W11700294		Assembly, Orifice Holder (9.5k) (left Rear)   (Replaces: W10473932)				$ 79.98
3B	W11234417		Assembly, Orifice Holder (15k) (right Front)   (Replaces: W10474166)				$ 95.36
3C	W11700304		Assembly, Orifice Holder (5k) (right Rear)   (Replaces: W10474162)				$ 77.26
3D	W10836764		Assembly, Orifice Holder (8k) (center)				$ 119.27
8A	WPW10279614		Valve, Gas (left Rear)   (Replaces: W10279614)				$ 266.49
8B	WPW10247744		Valve, Gas (right Rear)   (Replaces: W10247744)				$ 266.78
8C	W10850894		Valve, Gas (center)				$ 265.07
NI	W11126051		Kit, Lp Bake And Broil   (Replaces: W10566537)				$ 122.89
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 89.83
NI	W11204348		Kit, Lp 5 Orifice Conversion   (Replaces: W11087531)				$ 120.48
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
