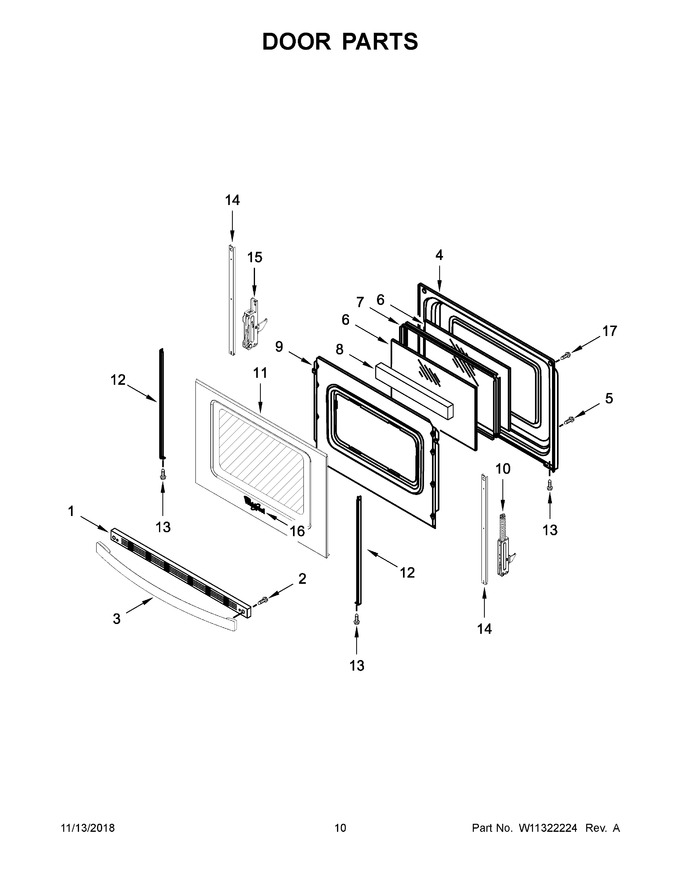

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 175.37
2	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.88
3	W11159497		Handle, Door (includes Standoff) (black Stainless)   (Replaces: W11039071)				$ 227.48
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 355.13
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	W11159620		Glass, Inner   (Replaces: W11044424)			Immediately	$ 177.53
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 84.86
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 96.54
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 221.30
10	WPW10299224		Hinge, Active (with Spring)   (Replaces: W10299224)			Immediately	$ 73.47
11	W11247684		Glass Assembly, Outer Door (black Stainless)   (Replaces: W11169660)			Immediately	$ 446.82
12	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 53.77
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.07
14	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 26.36
15	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
16	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
17	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.78
11A	W11249559		Glass Assembly, Outer Door (stainless)   (Replaces: W11167877)			Immediately	$ 444.93
12A	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 72.96
3A	W11398742		Handle, Door (includes Standoff) (stainless)   (Replaces: W11039070)				$ 235.13
