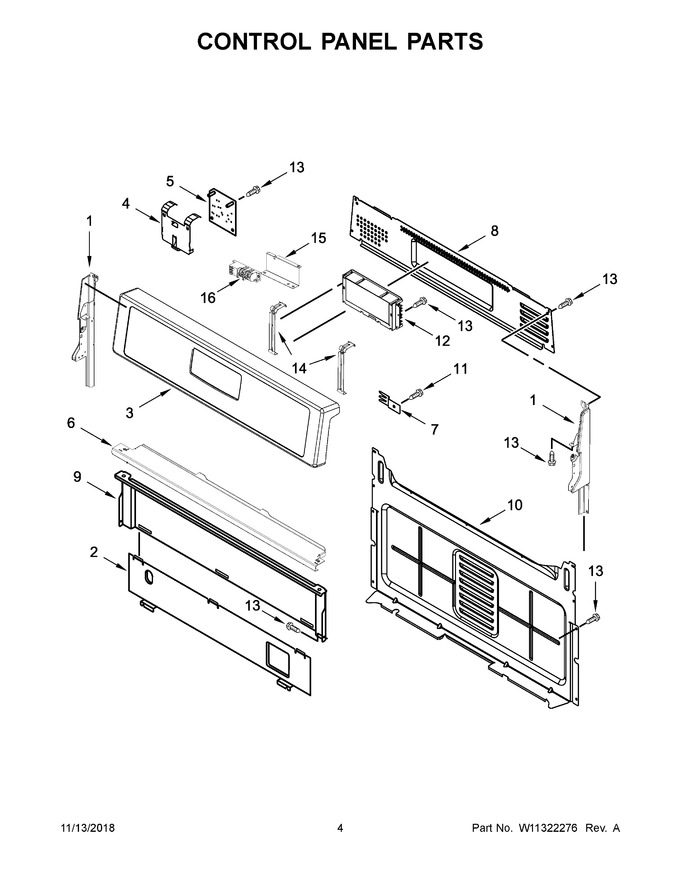

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 146.50
2	8053505		Shield, Heat				$ 157.99
3	W11101498		Panel, Control (black)   (Replaces: W10885611)		Appelez-nous	-
4	W10762981		Bracket, Mounting				$ 72.78
5	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 218.43
6	W10516123		Bracket, Console Mounting		Appelez-nous	-
7	8523412		Bracket, Rear Cooktop				$ 159.90
8	W10198745		Cover, Upper				$ 122.76
9	W10192841		Shield, Heat				$ 101.61
10	W10184370		Cover, Back		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	W11159621		Control, Electronic (lcx) (black)   (Replaces: W11204525)				$ 446.66
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
14	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 80.77
15	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
16	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
12A	W11317839		Control, Electronic (lcx) (white)   (Replaces: W11204522)		Appelez-nous	-
12B	W11317843		Control, Electronic (lcx) (biscuit)   (Replaces: W11204523)		Appelez-nous	-
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 40.44
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 40.43
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 57.93
1D	W11230611		Endcap (biscuit (left))   (Replaces: W11130373)		Appelez-nous	-
1E	W11230612		Endcap (biscuit (right))   (Replaces: W11130380)		Appelez-nous	-
3A	W11101500		Panel, Control (white)   (Replaces: W10885610)				$ 318.21
3B	W11165532		Panel, Control (biscuit)   (Replaces: W11027383)		Appelez-nous	-
