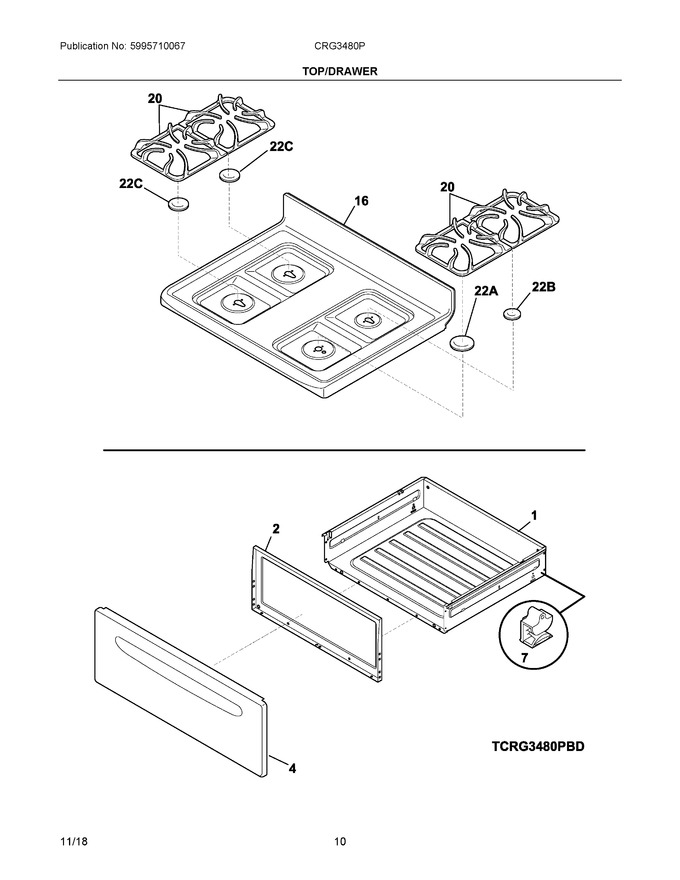

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility |
|
Immediately | $ 122.90 | ||||
| 2 | 5304527988 | Liner, Drawer (Replaces: 316403200) |
|
Immediately | $ 29.49 | ||||
| 4 | 316403418 | Panel, Drawer, White, Front |
|
$ 65.21 | |||||
| 7 | 316407402 | Glide, Drawer, Rear |
|
Immediately | $ 10.95 | ||||
| 16 | 316254506 | Maintop, Assembly, White |
|
$ 233.52 | |||||
| 20 | 316202405 | Grate, Black |
|
$ 164.31 | |||||
| 22A | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 51.12 | ||||
| 22B | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 38.93 | ||||
| 22C | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 40.61 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 |
