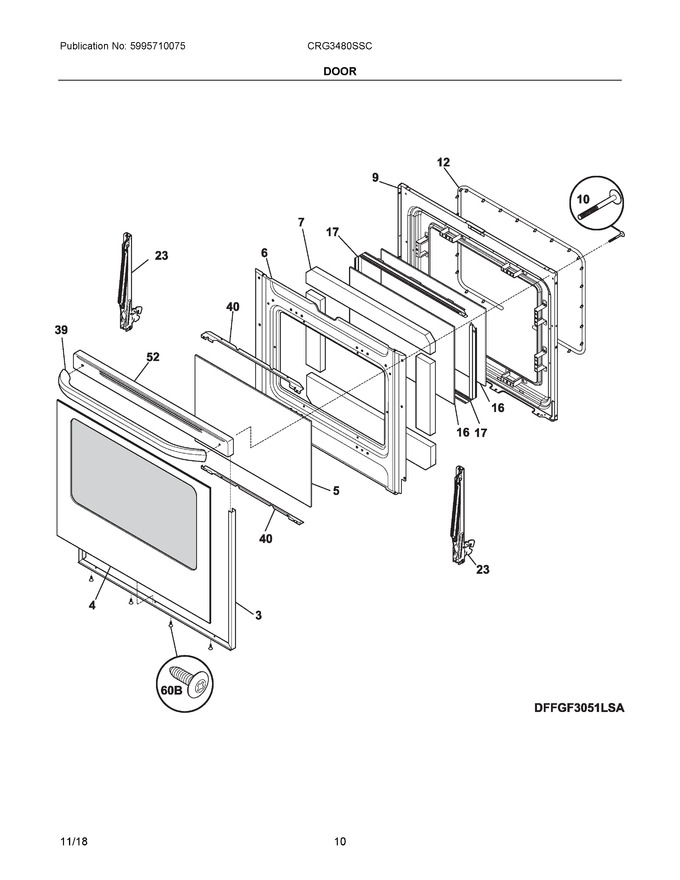

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935378 | Trim Kit-door, 3 Sided, Black, W/tape |
|
Immediately | $ 70.09 | ||||
| 4 | 316453033 | Glass Assembly, Oven Door, W/tape, Outer |
|
$ 249.48 | |||||
| 5 | 316446401 | Glass, Oven Door, Airwash |
|
Immediately | $ 139.03 | ||||
| 6 | 316402314 | Shield, Wool |
|
- | |||||
| 7 | 316403900 | Insulation, Oven Door |
|
Immediately | $ 80.33 | ||||
| 9 | 316423807 | Liner-oven Door |
|
$ 190.44 | |||||
| 10 | 5304507924 | Screw, Handle Mtg, 10-24 X 2.188, (2) (Replaces: 316513301) |
|
Immediately | $ 18.31 | ||||
| 12 | 5304498835 | Seal, Oven Door (Replaces: 316403101) |
|
Immediately | $ 98.60 | ||||
| 16 | 5304503232 | Glass, Oven Door, Inner, Hrc1 (Replaces: 316117503) |
|
$ 129.94 | |||||
| 17 | 5304504811 | Spacer, Glass |
|
Immediately | $ 27.80 | ||||
| 23 | 316575909 | Hinge, Oven Door, Black |
|
Immediately | $ 109.55 | ||||
| 39 | 316558201 | Handle, Door, Stainless |
|
$ 193.59 | |||||
| 40 | 316446301 | Bracket, Glass, Airwash, (2) |
|
$ 59.96 | |||||
| 52 | 316575501 | Cap, Door Trim, Black |
|
$ 123.03 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 14.96 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 |
