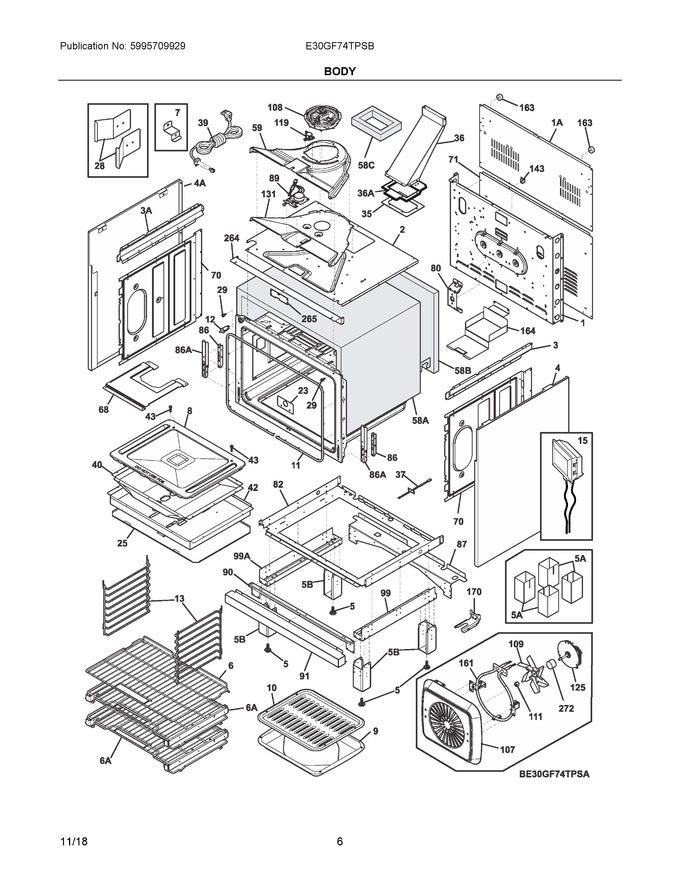

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017310		Panel, Main Back		Appelez-nous	-
2	139078202		Shield, Insulation, Top		Appelez-nous	-
3	139075400		Panel, Rh Side, Upper		Appelez-nous	-
4	5304498468		Panel, Body Side, Rh		Appelez-nous	-
5	318175506		Screw, Leveling				$ 42.53
6	808713913		Rack Assembly, Ladder, Nickel, W/handle				$ 159.86
7	139077800		Bracket, Main Back, (4)		Appelez-nous	-
8	139005002		Panel, Oven Bottom, Cobalt				$ 122.33
9	316081901		Pan, Broiler, Cobalt Blue				$ 82.58
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 58.99
11	807545502		Seal, Oven Door, Gray				$ 155.93
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
13	808713901		Ladder Assembly, Kit, Nickel, W/2 Ladders				$ 167.74
15	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
23	139004500		Cover, Broil Opening		Appelez-nous	-
25	318291900		Bracket, Shield, Lower				$ 104.74
28	318369301		Bracket, Side Panel, (2)		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 13.39
35	318291300		Seal, Flue Cavity		Appelez-nous	-
36	808080505		Flue, Assembly		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 53.48
39	5304534000		Cord, Electric Power, Black   (Replaces: 5304509199)			Immediately	$ 37.08
40	139004700		Box, Oven Burner				$ 122.06
42	5304498484		Box, Burner		Appelez-nous	-
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 11.03
59	139078002		Duct, Cooling Fan, Top				$ 87.41
68	5304504565		Shield, Broil, Top Cavity		Appelez-nous	-
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 80.05
71	318300911		Panel, Cover		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 16.54
82	139075500		Shield, Insulation, Lower		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 23.59
87	5304509825		Bracket, Mounting Plate		Appelez-nous	-
89	5304528836		Motor, Latch Assembly   (Replaces: 139078301)			Immediately	$ 84.82
90	5304498481		Support, Front, Lower		Appelez-nous	-
91	5304498466		Trim, Bottom, Stainless		Appelez-nous	-
99	5304498479		Support, Lower, Rh		Appelez-nous	-
107	139013902		Cover, Convection Fan, Cobalt				$ 133.93
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 218.45
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
119	807144901		Thermostat, Safety, 110c Deg				$ 64.88
125	139008601		Motor, Fan, Convection				$ 171.26
131	139078102		Duct, Cooling Fan, Bottom				$ 71.66
143	318172904		Support, Wire		Appelez-nous	-
161	139013800		Element, Convection, 350w				$ 97.74
163	318531700		Spacer, (2)		Appelez-nous	-
164	5304498485		Shield, Spark		Appelez-nous	-
170	316112008		Anti Tip Kit, Assy, 30", W/template		Appelez-nous	-
264	807057101		Trim, Vent Support, Black		Appelez-nous	-
265	807050701		Trim, Cover, Black, Vent Motor		Appelez-nous	-
272	139021700		Tube, Convection Fan				$ 19.69
1A	318353110		Panel, Back, Upper		Appelez-nous	-
36A	139008301		Support, Panel, Flue		Appelez-nous	-
3A	139075401		Panel, Lh Side, Upper		Appelez-nous	-
4A	5304498467		Panel, Body Side, Lh				$ 298.46
58A	5304497189		Insulation, Oven Wrapper		Appelez-nous	-
58B	139020202		Insulation, Oven Back				$ 44.46
58C	807403101		Insulation, Flue, (3)		Appelez-nous	-
5A	807020802		Cover, Leg, (4)		Appelez-nous	-
5B	5304498486		Support, Leg, (4)		Appelez-nous	-
6A	808713905		Glide Rack, Assembly, Nickel, W/handle				$ 334.43
70A	139000601		Shield, Insulation, Sides, (2)				$ 80.05
86A	809138301		Bracket, Support, Hinge Recpt.		Appelez-nous	-
99A	5304498480		Support, Lower, Lh		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5304515242		Harness, Wiring, Main		Appelez-nous	-
NIA	5304481623		Screw, #10-32x1/2				$ 9.61
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 54.80
NIA	318579001		Bracket, Wire				$ 11.08
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NIA	316089500		Screw, 10-16 X .486				$ 14.96
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 10.24
NIAA	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
