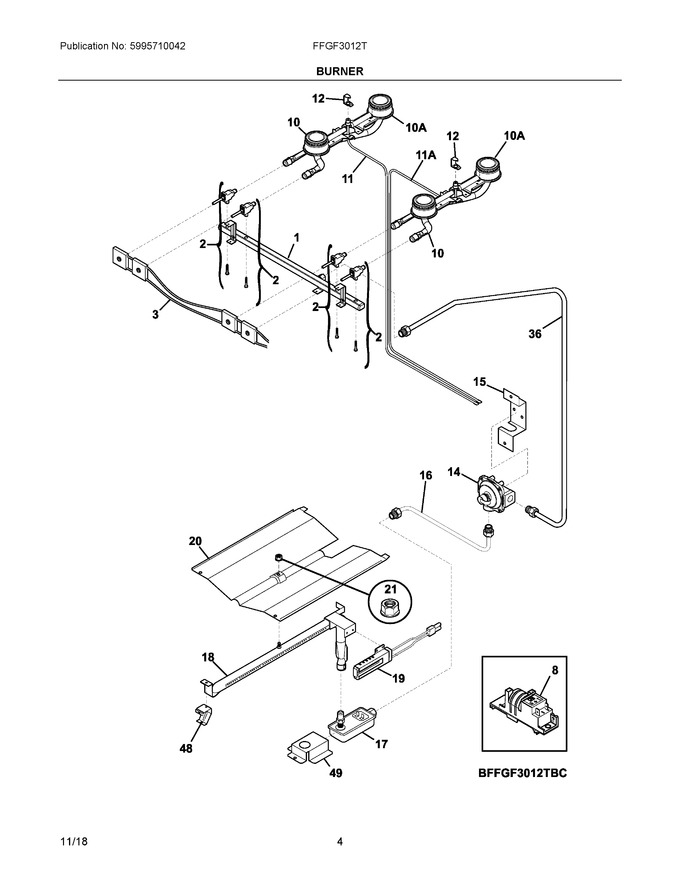

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506153		Manifold		Appelez-nous	-
2	5304506148		Valve, Top Burner		Appelez-nous	-
3	5304506156		Harness, Ignition		Appelez-nous	-
8	808608801		Spark Module				$ 79.75
10	5304506427		Top, Burner, Front				$ 112.92
11	316081704		Ignitor-top Burner, Top Burner, 33		Appelez-nous	-
12	3016993		Retainer, Ignitor		Appelez-nous	-
14	5304521339		Regulator, Pressure   (Replaces: 316091706)			Immediately	$ 117.13
15	316091600		Bracket, Regulator				$ 81.73
16	316065006		Tube, Valve To Regul, 3/8				$ 135.66
17	3203459		Valve, Safety				$ 337.38
18	316114300		Burner, Oven				$ 188.75
19	5304509706		Ignitor, Oven Burner			Immediately	$ 210.66
20	316496001		Baffle, Oven Burner				$ 78.33
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.46
36	5304507888		Tube, Regulator		Appelez-nous	-
48	3018603		Bracket, Support, Oven Burner		Appelez-nous	-
49	316416300		Bracket, Safety Valve		Appelez-nous	-
10A	5304506426		Top, Burner, Rear				$ 111.17
11A	316081705		Ignitor, Top Burner, 50				$ 104.74
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 14.96
NI	GRLP5		Lp Conversion Kit   (Replaces: 316243723)			Immediately	$ 55.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 15.75
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 8.66
