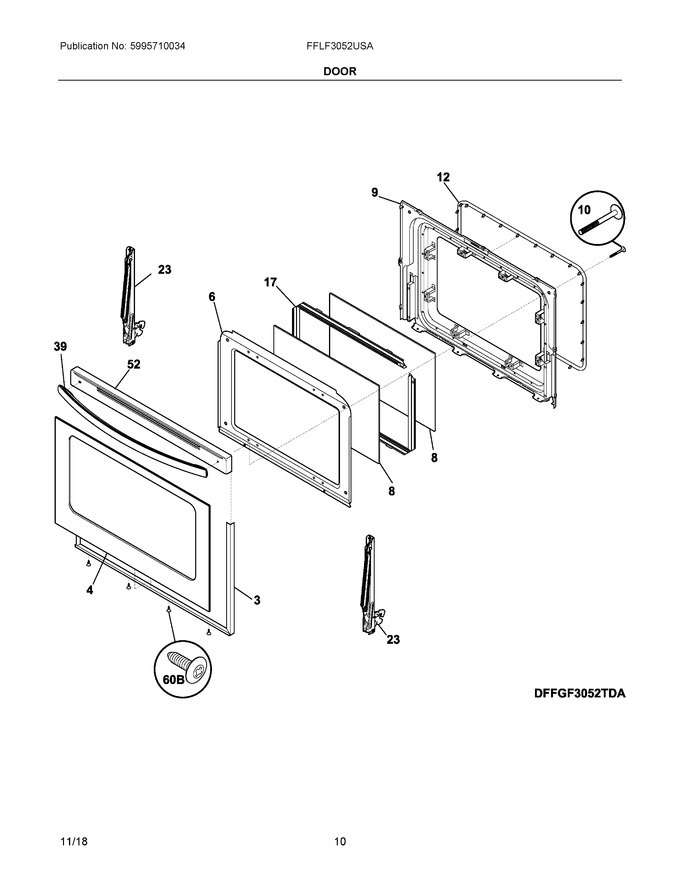

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935398		Trim Kit-door, 3 Sided, Black, W/tape And Foil				$ 54.86
4	316453048		Glass Assembly, Oven Door, W/tape, Outer				$ 377.16
6	316222714		Shield, Wool, Oven Door				$ 57.91
8	5304503232		Glass, Oven Door, Inner				$ 129.94
9	316230635		Liner, Oven Door				$ 150.41
10	316001013		Screw, Wafer Head, 10-24 X 1.375, Handle Mtg.			Immediately	$ 2.68
12	316239700		Seal, Oven Door			Immediately	$ 169.37
17	5304520152		Spacer, Door Glass				$ 26.12
23	316575924		Hinge, Oven Door				$ 71.66
39	140067504096		Handle, Door, Stainless   (Replaces: 5304507752)				$ 53.48
52	316491201		Cap, Door Trim, Black				$ 111.04
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NI	316483102		Label, Anti-tip				$ 3.95
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
