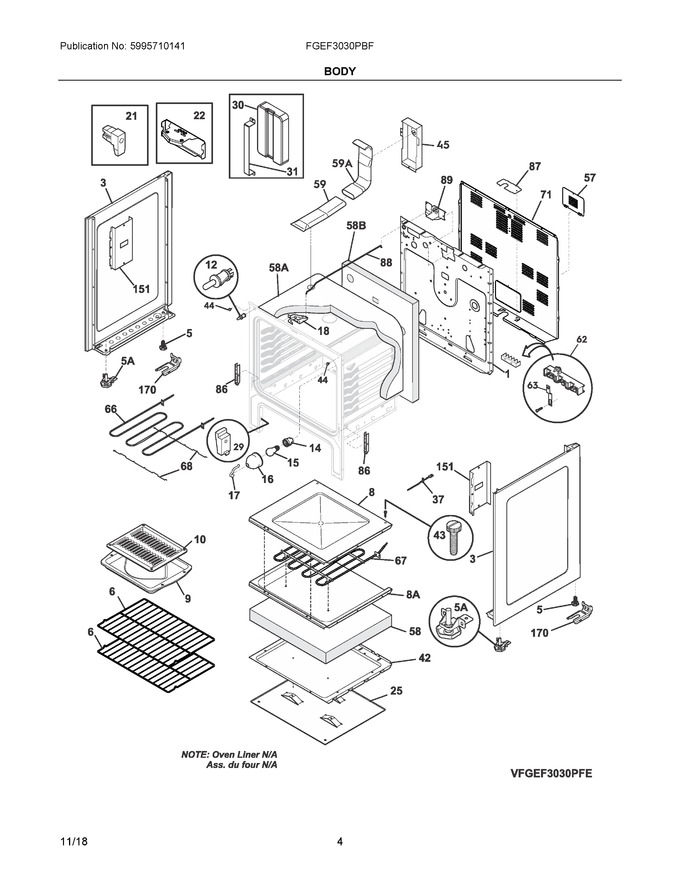

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401806		Panel, Main Back   (Replaces: 316401804)				$ 93.25
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400118)			Immediately	$ 149.65
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	316496201		Rack, Oven			Immediately	$ 114.98
8	316400601		Panel, Oven Bottom				$ 139.86
9	316081900		Pan, Broileroptional Access0ry				$ 65.89
10	316082000		Insert, Broiler Panoptional Access0ry				$ 68.85
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 60.82
14	316116400		Receptacle, Oven Light			Immediately	$ 62.33
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 22.75
16	5304524341		Lens, Oven Light, Glass   (Replaces: 318406100)			Immediately	$ 19.07
17	316087500		Retainer, Lens				$ 63.00
18	316405800		Latch Assembly, Oven Door			Immediately	$ 63.04
21	316408000		Clip, Bodyside				$ 20.22
22	316286300		Bracket-bodyside, (2)				$ 19.69
25	316406200		Shield, Heat, Lower				$ 97.74
29	807047102		Glide, Drawer, Front			Immediately	$ 26.47
30	5304511083		Counterweight, Concrete Block		Appelez-nous	-
31	5304511084		Bracket, Concrete Block		Appelez-nous	-
37	316490000		Probe, Oven Temp			Immediately	$ 64.78
42	316407700		Shield, Wool, Lower				$ 145.77
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 11.03
44	316517600		Bumper, Front, Main				$ 13.39
45	316234100		Shield, Wire, Vent Tube				$ 77.96
57	316283600		Cover, Access				$ 13.89
58	316403802		Insulation, Oven Sump				$ 122.85
59	316208401		Vent Tube, Assembly, W/catalyst				$ 215.71
62	5303935271		Terminal Block Kit				$ 81.73
63	316542600		Plate, Grounding Strap		Appelez-nous	-
66	316203301		Element, Broil			Immediately	$ 202.65
67	316413800		Element, Bake, Hidden			Immediately	$ 300.83
68	316404002		Support, Element, Broil   (Replaces: 316404000)				$ 9.72
71	316283204		Shield, Rear Wall				$ 62.36
86	316441300		Receptacle, Hinge				$ 24.41
87	316081200		Bracket, Cable Mtg		Appelez-nous	-
88	316203500		Rod, Auto Latch				$ 80.33
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 58.16
151	316404601		Shield, Bodyside				$ 23.63
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 21.01
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400119)			Immediately	$ 148.81
58A	316406602		Insulation, Oven Wrapper				$ 134.66
58B	316406500		Insulation, Oven Back				$ 98.44
59A	316208304		Tube, Oven Vent, Upper				$ 88.99
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 16.76
8A	316411106		Base, Bake Element				$ 122.69
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 13.39
NI	316580296		Harness, Wiring, Main		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 14.32
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NI	316089501		Screw, 10-16		Appelez-nous	-
NIA	316064600		Support, Oven Bottom				$ 21.06
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
NIA	316247300		Catalyst, Oven Vent, Ceramic				$ 110.25
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 14.32
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIC	316542200		Insulator		Appelez-nous	-
NIC	316541700		Template, Anti-tip		Appelez-nous	-
