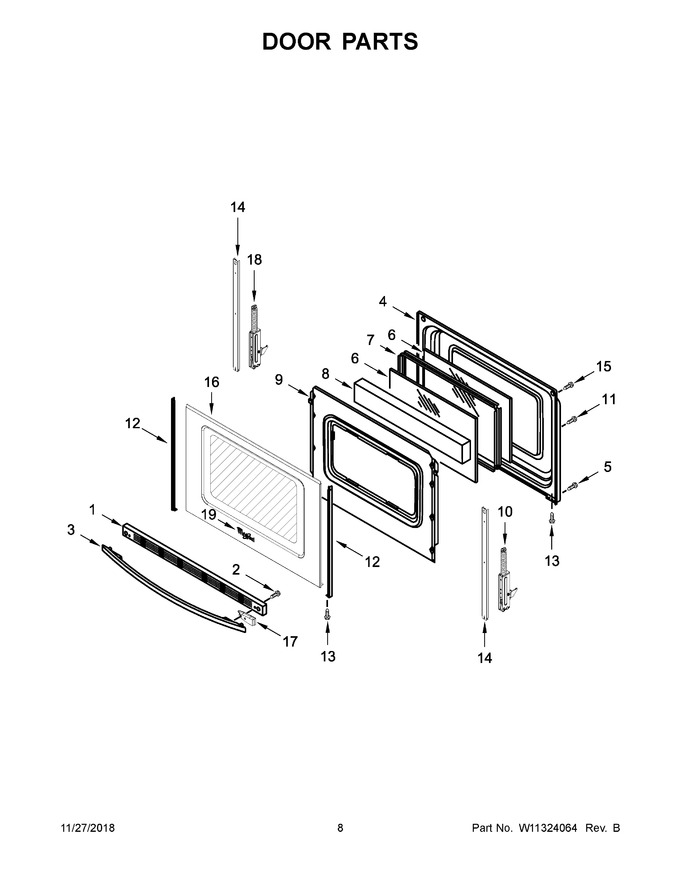

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 175.37
2	W10896982		Screw   (Replaces: W10465158)				$ 8.40
3	WPW10618239		Handle, Door (stainless)   (Replaces: W10618239)			Immediately	$ 175.54
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 233.31
10	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 63.80
11	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
12	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 53.77
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
14	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 27.68
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
16	W11219379		Assembly, Door Glass (stainless)   (Replaces: W11169624)				$ 452.91
17	WPW10410341		Standoff, Handle (black)   (Replaces: W10410341)				$ 80.75
18	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
19	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
12A	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 72.96
