View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts

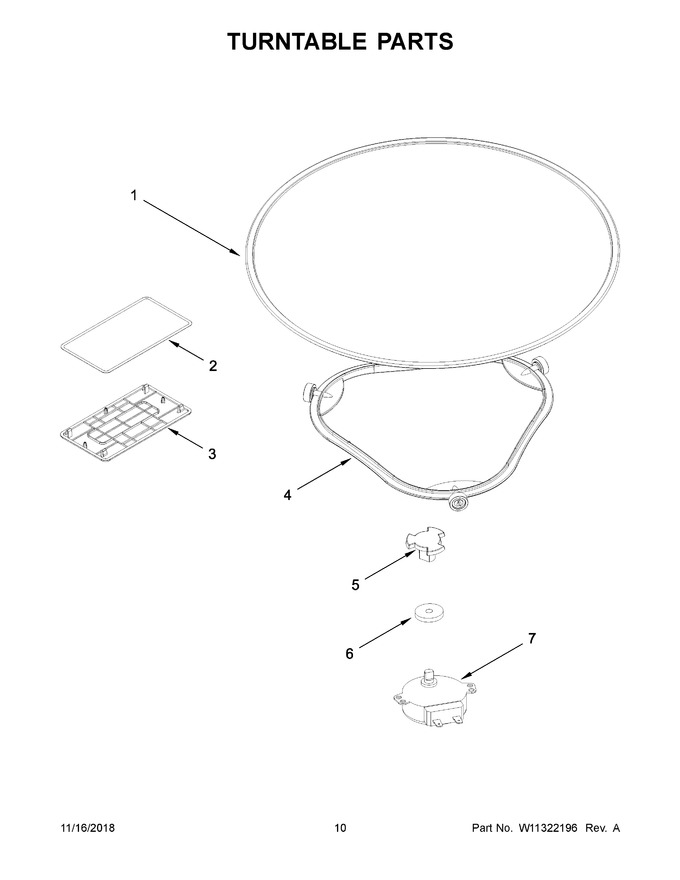

06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11367904 | Turntable (Replaces: W11255440) |
|
Immediately | $ 72.89 | ||||
| 2 | W11126541 | Seal, Waveguide |
|
$ 22.38 | |||||
| 3 | W11193296 | Cover, Waveguide |
|
$ 77.77 | |||||
| 4 | W11213915 | Ring, Turntable (Replaces: W11096340) |
|
Immediately | $ 71.69 | ||||
| 5 | W11096343 | Driver, Turntable |
|
$ 83.46 | |||||
| 6 | W11096347 | Seal, Waterproof |
|
$ 14.34 | |||||
| 7 | WPW10466420 | Motor, Turntable (Replaces: W10466420) |
|
Immediately | $ 45.71 |
