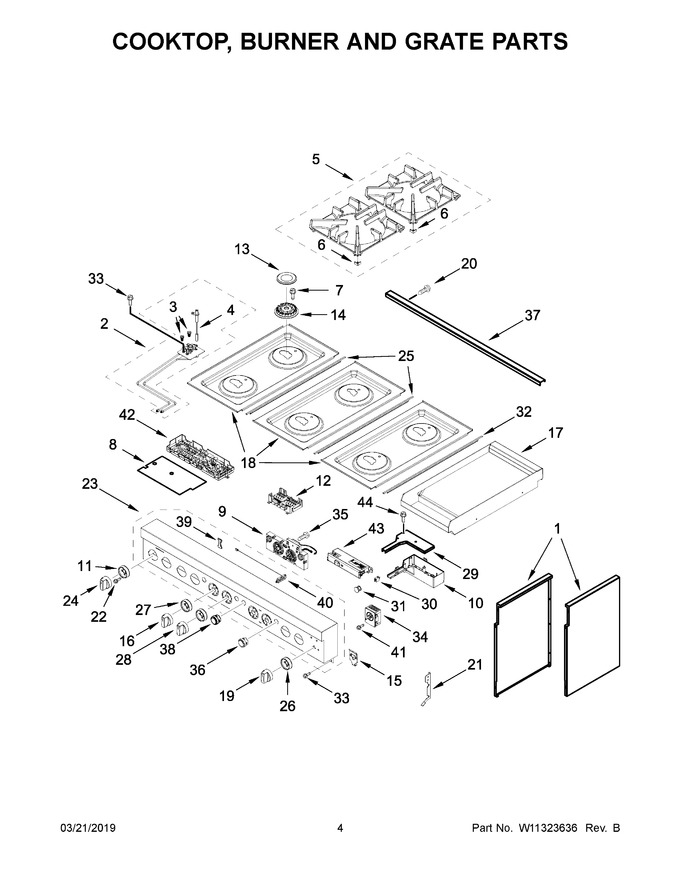

03 - Cooktop, Burner And Grate Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
2	W11319741		Assembly, Orifice Holder (left Front)   (Replaces: W10892807)				$ 121.66
3	W11643164		Orifice, Main (17.4k) (left Front & Right Center Front)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter (left Front, Left Rear, Right Center Front)   (Replaces: W11238757)			Immediately	$ 23.48
5	W11515370		Assembly, Grate (black (set Of 2))   (Replaces: W11179862)				$ 394.33
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11447718		Screw   (Replaces: W11196257)			Immediately	$ 14.74
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11319204		Interface, User   (Replaces: W11292568)			Immediately	$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Bezel, Cooktop (for 6 Cooktop Burners)   (Replaces: W11090283)			Immediately	$ 49.29
12	W11317945		Manager, Appliance (expansion)   (Replaces: W10890116)				$ 453.65
13	W11319224		Cap, Burner (black (includes 6))   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high) (all But Left Centerzrear)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11596839		Knob, Oven Mode (stainless)   (Replaces: W10891872)				$ 118.01
17	N/P		Assembly, Griddle Module (part Number Shown On Burner Box And Griddle Parts Page)		Appelez-nous	-
18	W11316696		Panel, Cooktop (black (left))   (Replaces: W10803515)				$ 513.23
19	W11316866		Knob, Griddle (stainless)   (Replaces: W10884943)				$ 84.04
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11674763		Screw   (Replaces: W10919387)				$ 14.76
23	W11289593		Panel, Control   (Replaces: W11253772)				$ 891.92
24	W11574368		Knob, Burner (for 6 Cooktop Burners) (stainless)   (Replaces: W10882958)			Immediately	$ 92.43
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11317495		Bezel, Griddle   (Replaces: W11104966)				$ 55.28
27	W11317499		Bezel, Oven (for 4 Oven Knobs) (stainless)   (Replaces: W10914998)				$ 28.02
28	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W10891871)				$ 118.01
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11320157		Trim, Island   (Replaces: W11156418)		Appelez-nous	-
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 7.30
42	W11839801		Manager, Appliance (powermax)   (Replaces: W11100270)				$ 409.76
43	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 179.89
44	W10709795		Screw   (Replaces: 7101P624-60)				$ 13.79
14A	W11319673		Spreader, Flame (low) (left Center Rear)   (Replaces: W10892022)			Immediately	$ 229.46
18A	W11316697		Panel, Cooktop (black (left Center))   (Replaces: W10803519)				$ 502.01
18B	W11316698		Panel, Cooktop (black (right Center))   (Replaces: W10804364)				$ 485.03
1A	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
2A	W11319746		Assembly, Orifice Holder (left Rear)   (Replaces: W10892495)				$ 123.91
2B	W11319745		Assembly, Orifice Holder (left Center Front)   (Replaces: W11114338)				$ 122.42
2C	W11319740		Assembly, Orifice Holder (left Center Rear)   (Replaces: W10892810)				$ 122.67
2D	W11319743		Assembly, Orifice Holder (right Center Front)   (Replaces: W10892505)				$ 125.13
2E	W11319747		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892444)		Appelez-nous	-
3A	W10892418		Orifice, Main (15.4k) (left Rear, Left Center Front, Right Center Rear)			Immediately	$ 103.03
3B	W10892440		Orifice, Main (7.2k) (left Center Rear)				$ 99.86
3C	W11661909		Orifice, Simmer (2.6k) (all But Left Center Rear)   (Replaces: W10892435)			Immediately	$ 74.14
3D	W10892429		Orifice, Simmer (2.0k) (left Center Rear)				$ 99.86
4A	W11580024		Igniter (left Center Front, Right Center Rear)   (Replaces: W11238758)			Immediately	$ 23.66
4B	W11238756		Igniter (left Center Rear)			Immediately	$ 67.96
