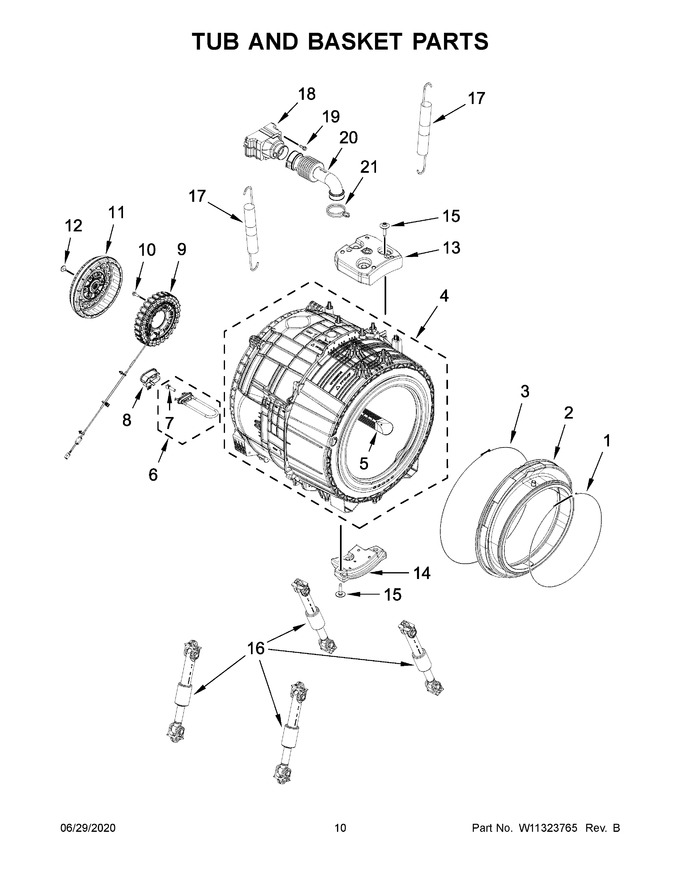

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11266654		Retainer, Front Panel To Bellow   (Replaces: W10818945)			Immediately	$ 26.94
2	W11314648		Bellow   (Replaces: W10897390)			Immediately	$ 270.99
3	W11314649		Retainer, Bellow To Tub   (Replaces: W11048199)			Immediately	$ 22.35
4	W11460604		Assembly, Tub And Drum   (Replaces: W10921994)				$ 832.09
5	W11460395		Baffle, Drum   (Replaces: W11198668)			Immediately	$ 107.17
6	W11314664		Assembly, Heater   (Replaces: W10918779)			Immediately	$ 184.95
7	W11314664		Sensor, Ntc   (Replaces: W10919909)			Immediately	$ 184.95
8	W11314776		Shield, Heater   (Replaces: W10909418)				$ 90.43
9	W11354541		Stator, Motor   (Replaces: W11261207)			Immediately	$ 415.19
10	W11314661		Screw, Stator   (Replaces: W11035597)				$ 14.04
11	W11314361		Rotor, Motor   (Replaces: W10916241)			Immediately	$ 178.95
12	W11314657		Screw, Rotor   (Replaces: W10797525)				$ 14.32
13	W11314650		Counterweight, Top   (Replaces: W11209370)			Immediately	$ 155.45
14	W11607191		Counterweight, Bottom   (Replaces: W11279416)				$ 121.42
15	W11314651		Screw, Counterweight   (Replaces: W11235083)			Immediately	$ 14.13
16	W11316766		Damper Assembly   (Replaces: W11117022)			Immediately	$ 95.95
17	W11771999		Spring, Suspension   (Replaces: W10896675)			Immediately	$ 14.00
18	W11316248		Enclosure, Vent   (Replaces: W10919157)			Immediately	$ 187.05
19	W11230114		Screw   (Replaces: 8540513)				$ 13.28
20	W11316247		Hose, Ventilation   (Replaces: W11131396)			Immediately	$ 33.92
21	WP371502		Clamp, Hose   (Replaces: 371507)				$ 11.53

    View Diagram in Separate Window       Print Part List
