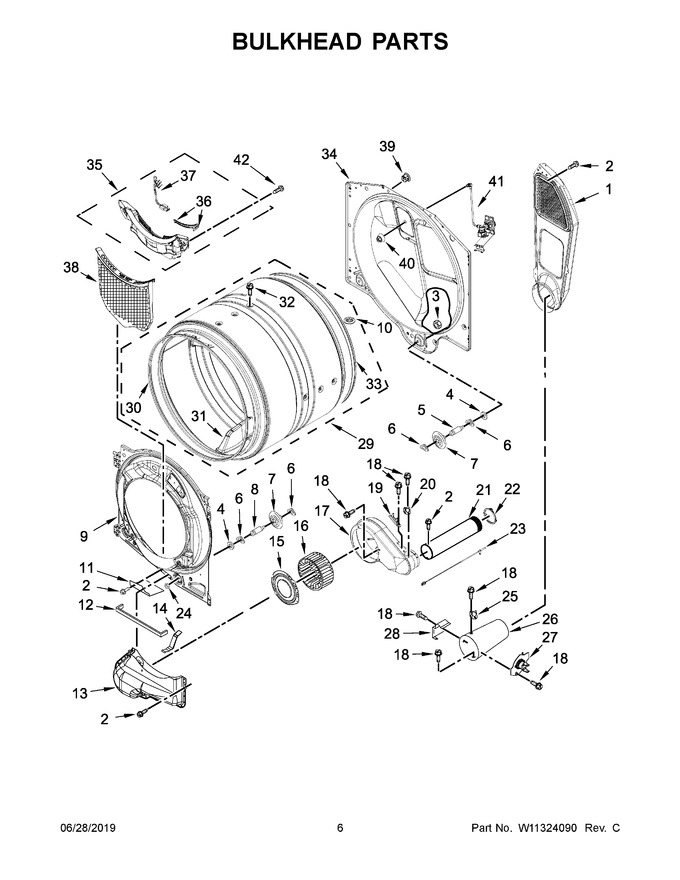

04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10293765 | Assembly, Air Duct (Replaces: W10293765) |
|
$ 355.54 | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 4 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 5 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 6 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 7 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 8 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 9 | W11712678 | Bulkhead, Front (Replaces: W10673493) |
|
Immediately | $ 250.72 | ||||
| 10 | W10665050 | Cap, Plug |
|
$ 20.15 | |||||
| 11 | W11257251 | Shield, Blower |
|
$ 72.06 | |||||
| 12 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 29.03 | ||||
| 13 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 219.70 | |||||
| 14 | W10414388 | Clip, Lint Duct |
|
$ 14.56 | |||||
| 15 | W11688571 | Assembly, Collar (includes Seal) (Replaces: W11254843) |
|
$ 96.53 | |||||
| 16 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 17 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 149.69 | ||||
| 18 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 19 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 71.42 | ||||
| 20 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 21 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 139.40 | ||||
| 22 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 85.70 | |||||
| 23 | W11396709 | Thermistor, Gas Inlet (Replaces: W10623852) |
|
Immediately | $ 87.33 | ||||
| 24 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.77 | |||||
| 25 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 26 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 27 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 28 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 29 | W10381481 | Assembly, Drum (complete) |
|
Immediately | $ 443.44 | ||||
| 30 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 22.62 | ||||
| 31 | W11841932 | Bafffle, Drum (Replaces: W10416098) |
|
$ 39.96 | |||||
| 32 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 33 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 34 | W11299321 | Bulkhead, Rear (Replaces: W11209933) |
|
Immediately | $ 381.70 | ||||
| 35 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10672683) |
|
Immediately | $ 276.56 | ||||
| 36 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 37 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 38 | W11758174 | Lint Screen (white) (Replaces: W10516085) |
|
Immediately | $ 52.12 | ||||
| 39 | 8529007 | Plug, Rear Bulkhead |
|
$ 78.87 | |||||
| 40 | W11230609 | Nozzle, Cap (Replaces: W11100488) |
|
Immediately | $ 8.24 | ||||
| 41 | W11216837 | Valve And Hose Assembly (Replaces: W11157054) |
|
Immediately | $ 135.92 | ||||
| 42 | W11590579 | Screw (Replaces: W10794806) |
|
$ 14.73 |
