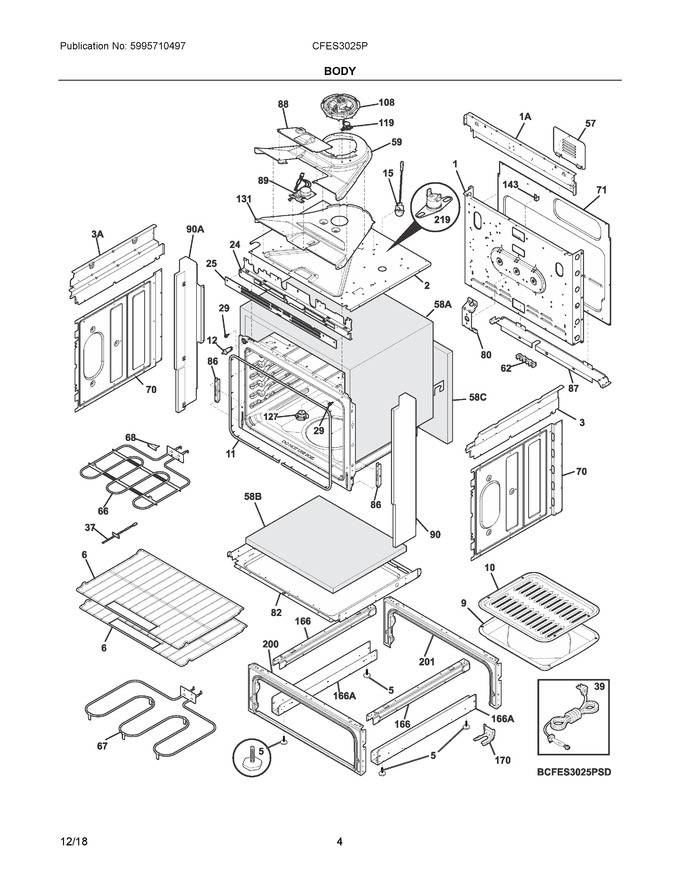

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017310		Panel, Main Back		Appelez-nous	-
2	139028100		Shield, Insulation, Top		Appelez-nous	-
3	318225230		Panel, Bodyside, Upper Rh		Appelez-nous	-
5	316498903		Leveling Leg				$ 13.48
6	139011800		Rack, Oven, W/handle				$ 128.00
9	316081900		Pan, Broiler				$ 65.89
10	316082000		Insert, Broiler Pan				$ 68.85
11	807545502		Seal, Oven Door, Gray				$ 155.93
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 22.84
24	139074902		Frame, Vent Trim		Appelez-nous	-
25	139075001		Cover, Vent Trim, Black				$ 67.24
29	318147430		Bumper, (2)				$ 21.06
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 53.48
39	318113111		Cord, Electric				$ 95.55
57	316283600		Cover, Access				$ 13.89
59	139027600		Duct, Cooling Fan, Upper				$ 95.29
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	5304521498		Element, Broil, 6 Pass, 3400w   (Replaces: 139008900)			Immediately	$ 96.90
67	139027501		Element, Bake, 6 Pass, 2750w				$ 198.45
70	139000601		Shield, Insulation, Sides, (2)				$ 80.05
71	139014001		Shield, Rear Wall, Lower				$ 70.88
80	139021101		Bracket, Support, Chassis/fan				$ 16.54
82	139008200		Shield, Insulation, Lower		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 23.59
87	318260625		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor				$ 26.78
89	139078302		Motor, Latch Assembly			Immediately	$ 118.56
90	5304511887		Panel, Filler, White, Rh				$ 70.56
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 218.45
119	807144901		Thermostat, Safety, 110c Deg				$ 64.88
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 11.14
131	139027700		Duct, Cooling Fan, Lower				$ 81.11
143	318172904		Support, Wire		Appelez-nous	-
166	318298410		Bracket, Base Support, (2)				$ 84.26
170	318170400		Anti-tip Bracket		Appelez-nous	-
200	318298232		Frame, Drawer, Black, Front				$ 95.13
201	318298233		Frame, Drawer, Black, Rear				$ 50.40
219	318005229		Switch, Thermal Cutout			Immediately	$ 55.60
166A	5304511884		Bracket, Base Support, Lower				$ 73.31
170A	5304486410		Kit, Anti Tip, W/brkt & Instru				$ 176.11
1A	139004600		Panel, Main Back, Upper				$ 75.13
3A	318225231		Panel, Bodyside, Upper Lh		Appelez-nous	-
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58B	139020303		Insulation, Oven Bottom		Appelez-nous	-
58C	139020202		Insulation, Oven Back				$ 44.46
90A	5304511888		Panel, Filler, White, Lh				$ 69.79
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	139021000		Plate, Counter Weight		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5304503336		Harness, Wiring, Main				$ 194.30
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	318235301		Connector Assy., W/3 Lugs, & Instructions   (Replaces: 318235300)				$ 32.29
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 67.15
NIA	318579001		Bracket, Wire				$ 11.08
NIA	316581300		Retainer, Wire				$ 4.73
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	318531701		Spacer				$ 13.39
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 14.32
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIC	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
