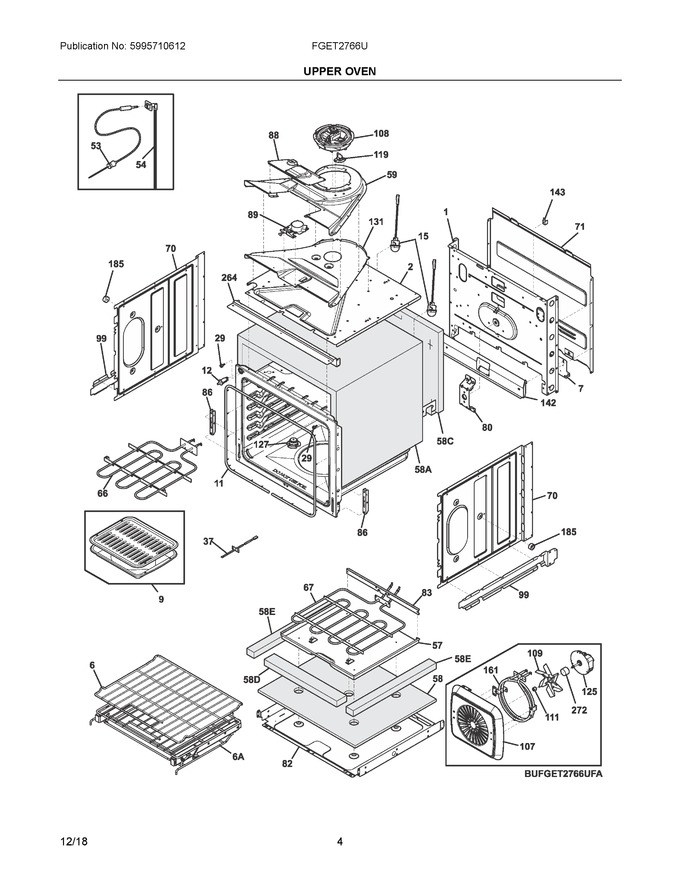

03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506958		Panel, Main Back		Appelez-nous	-
2	139027804		Shield, Insulation, Top		Appelez-nous	-
6	5304514984		Rack, Oven, W/handle			Immediately	$ 85.77
7	5304506960		Panel, Service, Main Back		Appelez-nous	-
9	5304494997		Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessory				$ 72.01
11	807545501		Seal, Oven Door, Gray			Immediately	$ 90.43
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 22.84
29	316517600		Bumper, Front, Main				$ 13.39
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 53.48
53	5304503737		Probe, Meat, Black   (Replaces: 5304516490)				$ 110.37
54	139017203		Receptacle Assy, Meat Probe   (Replaces: 5304514886)			Immediately	$ 170.10
57	5304538692		Box, Bake Element   (Replaces: 5304506949)		Appelez-nous	-
58	5304506952		Insulation, Bake Element, Lower				$ 85.84
59	139027600		Duct, Cooling Fan, Upper				$ 95.29
66	140123969028		Element, Broil, 6 Pass, 4000w   (Replaces: 5304514924)		Appelez-nous	-
67	140010667149		Element, Hidden Bake, 2500w   (Replaces: 5304506946)				$ 61.37
70	139000601		Shield, Insulation, Sides, (2)				$ 80.05
71	139022000		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 16.54
82	5304506947		Shield, Insulation, Lower		Appelez-nous	-
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 23.59
88	5304506964		Cover, Latch Motor				$ 26.78
89	5304528835		Motor, Latch Assy., 2 Terminals   (Replaces: 139021303)			Immediately	$ 82.36
99	139005201		Bracket, Support, Side, (2)		Appelez-nous	-
107	139013903		Cover, Convection Fan				$ 52.07
108	807123003		Motor Assembly, Fan		Appelez-nous	-
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
119	318578506		Thermostat, Safety, 105c			Immediately	$ 64.66
125	139008504		Motor, Convection Fan, 2400 Rpm, 2 Speed   (Replaces: 139008503)			Immediately	$ 189.52
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 11.14
131	139027700		Duct, Cooling Fan, Lower				$ 81.11
142	5304506953		Sheild, Air Deflector, Back		Appelez-nous	-
143	318172904		Bracket, Wire Support		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 52.92
185	318531800		Spacer, Oven Shield, (2)				$ 14.18
264	5304500996		Trim, Vent, Black		Appelez-nous	-
272	139021700		Tube, Convection Fan				$ 19.69
143A	5304501011		Bracket, Wire Support, W/tab		Appelez-nous	-
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58C	5304506954		Insulation, Oven, Back		Appelez-nous	-
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
6A	140304432010		Rack Assembly, Gliding, Nickel, W/handle   (Replaces: 5304518865)		Appelez-nous	-
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 10.24
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	5304514915		Harness, Wiring, Mdl, Upper		Appelez-nous	-
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 67.15
NIA	318579001		Bracket, Wire				$ 11.08
