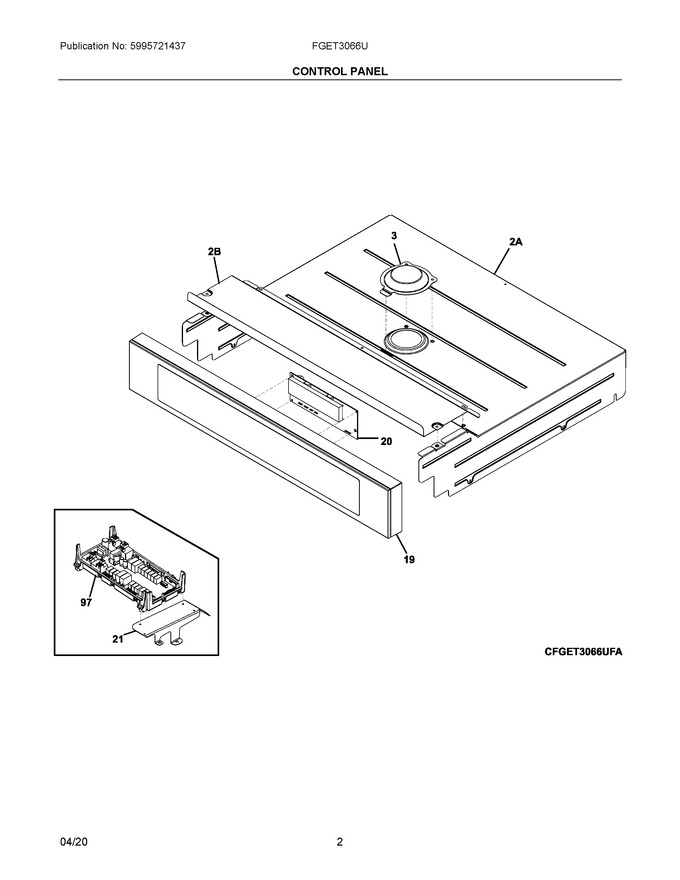

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	808963801		Shield, Sensor, Hall Effect				$ 25.28
19	5304514971		Control Panel, Assembly, Black Stainless				$ 806.10
20	316474943		Controller, Electronic, Mars			Immediately	$ 314.29
21	808931301		Bracket, Ovc Support		Appelez-nous	-
97	316475806		Board Assembly, Ovc2 Pcba, W/chassis			Immediately	$ 713.32
2A	808651402		Shield, Wire, Top		Appelez-nous	-
2B	5304520853		Cover, Control Access   (Replaces: 808651501)				$ 64.34
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 57.30
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304500624		Harness, Wiring, Lower Oven, Hall Effect				$ 84.26
NI	5304514831		Harness, Grounding Wire				$ 12.64
NI	3201861		Screw, 6 X 0.375, (4)				$ 0.84
NI	5304523462		Harness, Wiring, Communication, Control Panel   (Replaces: 5304520190)				$ 26.96
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
