01 - Cover Sheet

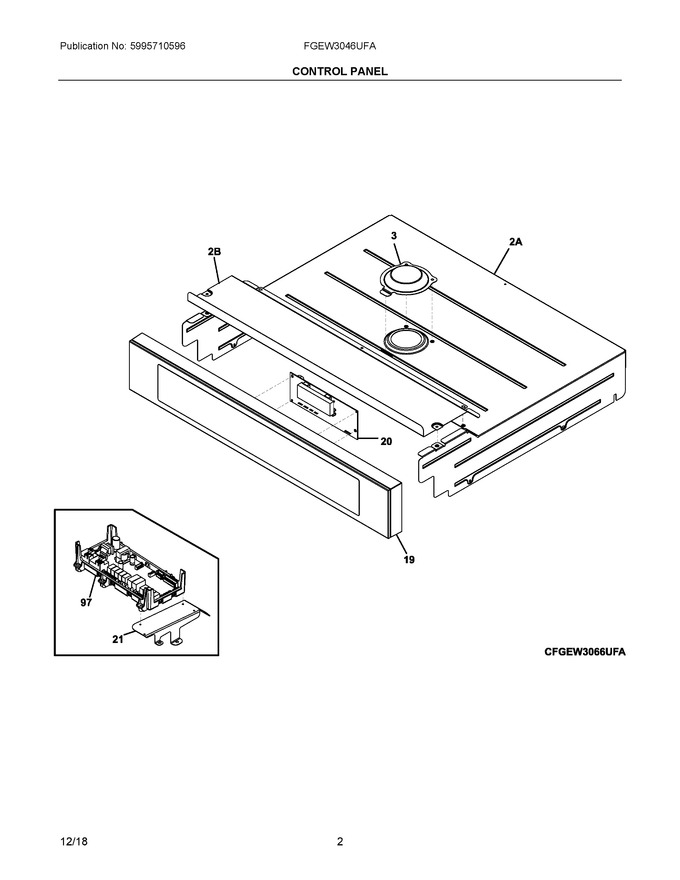

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 808963801 | Shield, Sensor, Hall Effect |
|
$ 25.28 | |||||
| 19 | 5304514964 | Control Panel, Assembly, Stainless, W/touch Pad |
|
$ 832.79 | |||||
| 20 | 316474946 | Controller, Electronic, Mars |
|
- | |||||
| 21 | 808931301 | Bracket, Ovc Support |
|
- | |||||
| 97 | 316472807 | Circuit Board, Assembly, Ovc1, W/housing |
|
Immediately | $ 407.52 | ||||
| 2A | 808651402 | Shield, Wire, Top |
|
- | |||||
| 2B | 5304520853 | Cover, Control Access (Replaces: 808651501) |
|
$ 64.34 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 5304514831 | Harness, Grounding Wire |
|
$ 12.64 | |||||
| NI | 3201861 | Screw, 6 X 0.375, (4) |
|
$ 0.84 | |||||
| NI | 5304523462 | Harness, Wiring, Communication, Control Panel (Replaces: 5304520190) |
|
$ 26.96 | |||||
| NI | 5304514832 | Harness, Wiring, Upper Oven, Hall Effect |
|
$ 57.30 | |||||
| NIA | 5303323129 | Screw, 8 X 0.750 |
|
- |
