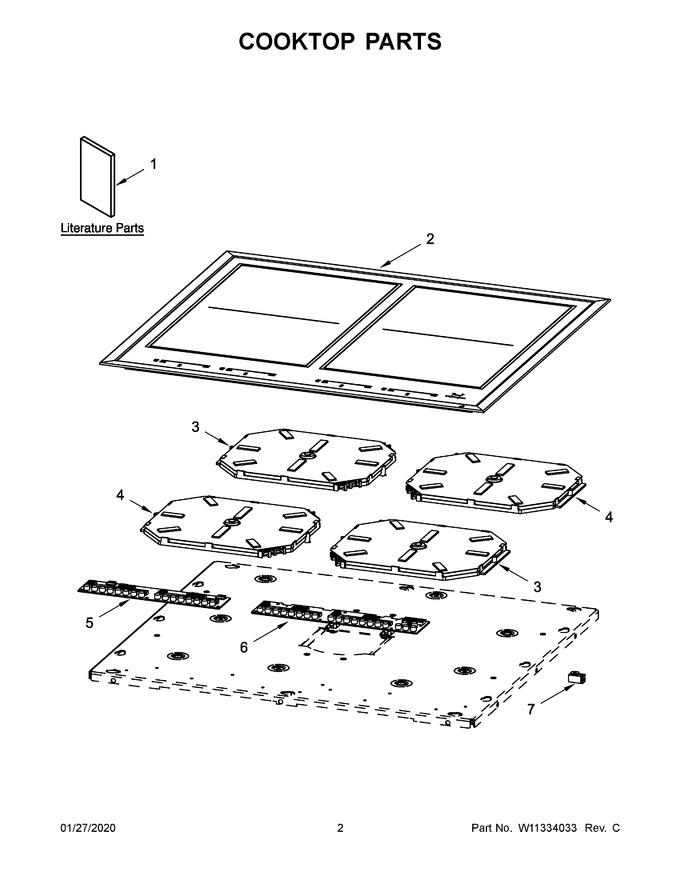

02 - Cooktop Parts


03 - Burner Box And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11251690		Installation Instructions		Appelez-nous	-
2	W11333459		Cooktop, Glass (stainless (includes Frame))   (Replaces: W11332747)		Appelez-nous	-
3	W11195476		Element, Induction (left Rear, Right Front)   (Replaces: W11195135)				$ 433.88
4	W11195475		Element, Induction (left Front, Right Rear)   (Replaces: W11195131)				$ 433.88
5	W11333464		Control, Electronic (left)   (Replaces: W11332763)				$ 597.63
6	W11391723		Control, Electronic (right)   (Replaces: W11384448)			Immediately	$ 587.49
7	W11195464		Isolator		Appelez-nous	-
1A	W11251689		Use And Care Guide		Appelez-nous	-
1B	W11251692		Tech Sheet		Appelez-nous	-
2A	W11333461		Cooktop, Glass (floating Glass Black)   (Replaces: W11332752)			Immediately	$ 1,356.82
