01 - Cover Sheet

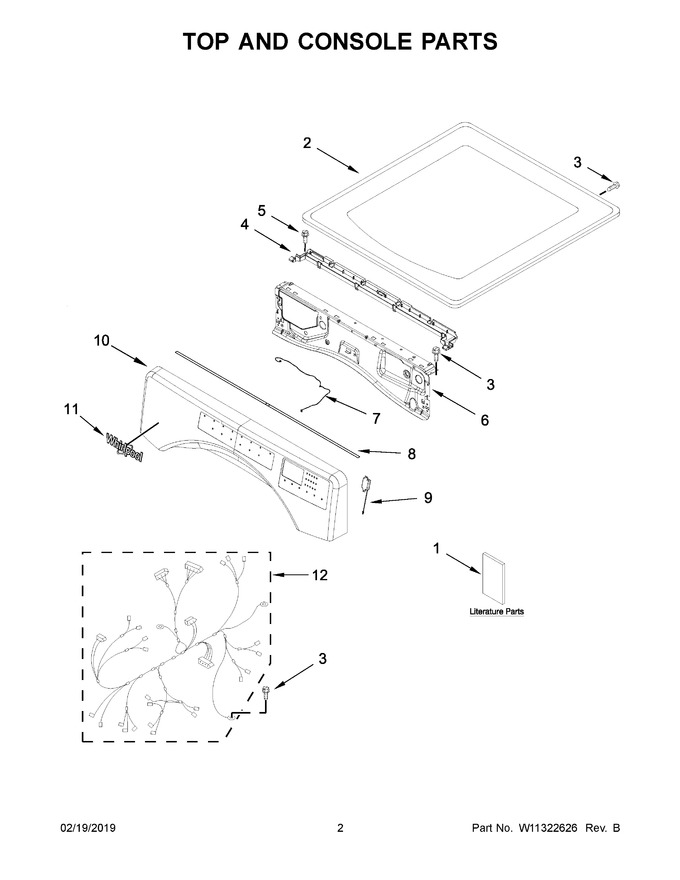

02 - Top And Console Parts
03 - Cabinet Parts
04 - Door Parts
05 - Bulkhead Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11184586 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 23.74 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W11459337 | Harness, User Interface (Replaces: W11160620) |
|
$ 33.89 | |||||
| 8 | W11231800 | Seal |
|
- | |||||
| 9 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 10 | W11367339 | Console Assembly (white) (Replaces: W11296381) |
|
$ 693.63 | |||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | W11157861 | Harness, Main Wiring |
|
$ 255.37 | |||||
| 10A | W11367342 | Console Assembly (chrome Shadow) (Replaces: W11296382) |
|
Immediately | $ 599.37 | ||||
| 1A | W11183136 | Installation Instructions |
|
- | |||||
| 1B | W11184899 | Tech Sheet |
|
- | |||||
| 1C | W11241395 | Wiring Diagram |
|
- | |||||
| 1D | W11184895 | Quick Start Guide |
|
- | |||||
| 2A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 |
