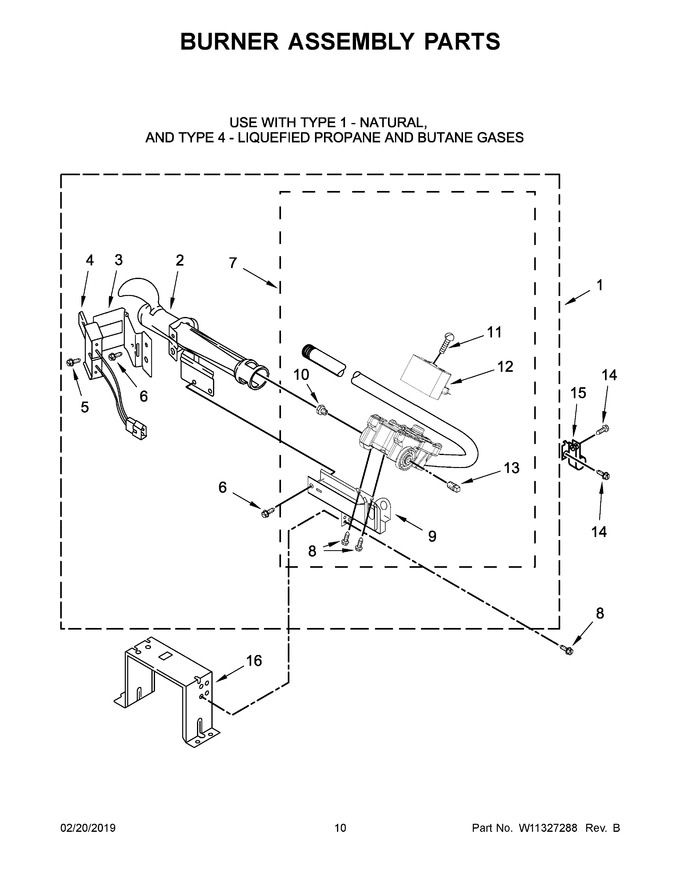

06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11309727		Burner, Assembly 60 Hz. (type 1) (copreci)   (Replaces: W11192399)				$ 406.42
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: W10366705)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	W11331937		Valve, Gas 60 Hz. (complete)   (Replaces: W11192400)			Immediately	$ 401.43
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	3389871		Base, Burner				$ 83.25
10	WP15418		Orifice, Burner (type 1 (natural))   (Replaces: 15418)				$ 37.32
11	326049536		Screw		Appelez-nous	-
12	WPW10328463		Coil (60 Hz)   (Replaces: W10328463)			Immediately	$ 79.02
13	W10295523		Pipe Plug		Appelez-nous	-
14	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
15	3387561		Clamp, Pipe		Appelez-nous	-
16	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
10A	299372		Orifice, Burner (type 4 (butane))		Appelez-nous	-
10B	WP229742		Orifice, Burner (type 4 (butane))   (Replaces: 229742)				$ 36.59
NI	W11581317		Conversion Kit (type 1 To Type 4 Lpg)   (Replaces: W10606694)			Immediately	$ 93.17
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
