01 - Cover Sheet

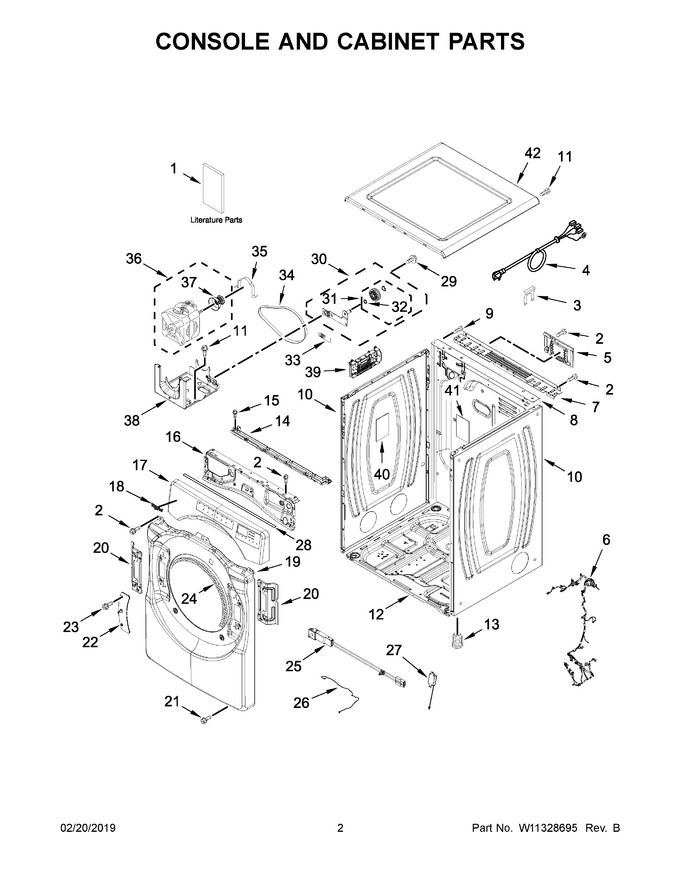

02 - Console And Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11184586 | Use And Care Guide |
|
- | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 4 | W11710615 | Cord, Power (Replaces: W10712173) |
|
Immediately | $ 82.45 | ||||
| 5 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 104.04 | |||||
| 6 | W11157862 | Harness, Wiring (main) |
|
$ 248.24 | |||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 8 | W10487430 | Panel, Rear |
|
Immediately | $ 357.12 | ||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 10 | W11315726 | Panel, Side (chrome Shadow) (Replaces: W11177570) |
|
Immediately | $ 321.64 | ||||
| 11 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 12 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 13 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 14 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 23.74 | |||||
| 15 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 16 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 17 | W11367342 | Panel, Console (chrome Shadow) (Replaces: W11296382) |
|
Immediately | $ 599.37 | ||||
| 18 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 19 | W11315729 | Front Panel (includes Door Hinge Bracket) (chrome Shadow) (Replaces: W11045941) |
|
$ 214.19 | |||||
| 20 | W11310030 | Bracket, Hinge (Replaces: W11084215) |
|
$ 24.71 | |||||
| 21 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 22 | W11310031 | Strike, Door (Replaces: W11126752) |
|
$ 29.06 | |||||
| 23 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 24 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 25 | W11427601 | Door Switch, Snap In (Replaces: W10569114) |
|
$ 76.53 | |||||
| 26 | W11459337 | Harness, User Interface (Replaces: W11160620) |
|
$ 33.89 | |||||
| 27 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 28 | W11231800 | Seal |
|
- | |||||
| 29 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 30 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 31 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 32 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 33 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 34 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 35 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 36 | W11511154 | Assembly, Motor (Replaces: W10806758) |
|
Immediately | $ 282.52 | ||||
| 37 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 38 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 39 | W11350209 | Appliance Control Unit (acu) (Replaces: W11170763) |
|
$ 493.38 | |||||
| 40 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 41 | W11409002 | Pad, Foam (Replaces: W10653662) |
|
$ 23.76 | |||||
| 42 | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 | |||||
| 1A | W11183136 | Installation Instructions |
|
- | |||||
| 1B | W11184899 | Tech Sheet |
|
- | |||||
| 1C | W11241395 | Wiring Diagram |
|
- | |||||
| 1D | W11184895 | Quick Start Guide |
|
- | |||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
