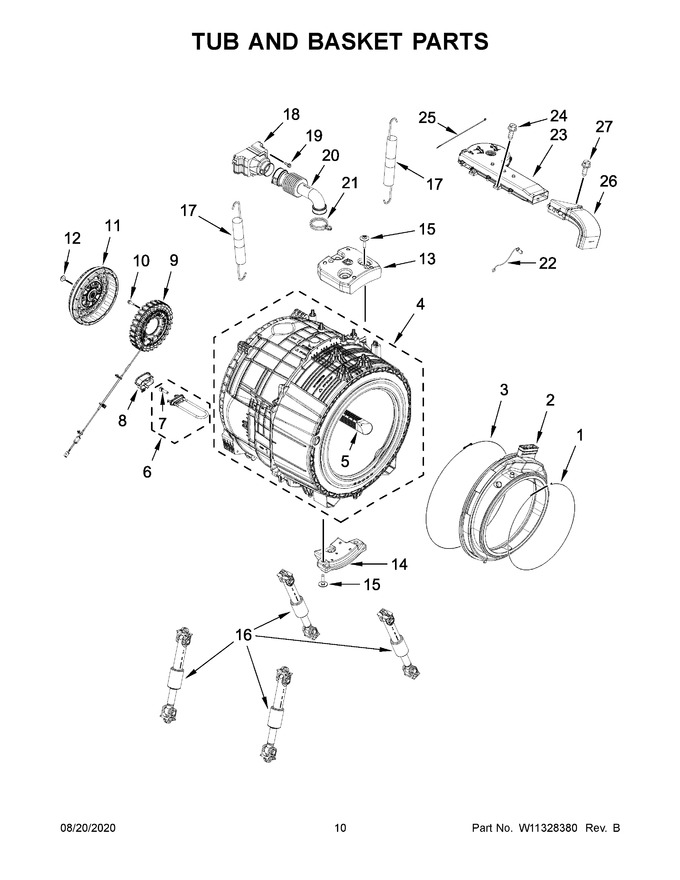

01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11266654 | Retainer, Front Panel To Bellow (Replaces: W10818945) |
|
Immediately | $ 26.94 | ||||
| 2 | W11318722 | Bellow (Replaces: W10912291) |
|
Immediately | $ 371.56 | ||||
| 3 | W11314649 | Retainer, Bellow To Tub (Replaces: W11048199) |
|
Immediately | $ 22.35 | ||||
| 4 | W11378552 | Assembly, Tub And Drum (Replaces: W11300381) |
|
$ 1,173.77 | |||||
| 5 | W11460395 | Baffle, Drum (Replaces: W11198668) |
|
Immediately | $ 112.53 | ||||
| 6 | W11314664 | Assembly, Heater (Replaces: W10918779) |
|
Immediately | $ 184.95 | ||||
| 7 | W11314664 | Sensor, Ntc (Replaces: W10919909) |
|
Immediately | $ 184.95 | ||||
| 8 | W11314776 | Shield, Heater (Replaces: W10909418) |
|
$ 94.95 | |||||
| 9 | W11354542 | Stator, Motor (Replaces: W11261210) |
|
Immediately | $ 383.54 | ||||
| 10 | W11314661 | Screw, Stator (Replaces: W11035597) |
|
$ 14.74 | |||||
| 11 | W11314361 | Rotor, Motor (Replaces: W10916241) |
|
Immediately | $ 178.95 | ||||
| 12 | W11314657 | Screw, Rotor (Replaces: W10797525) |
|
$ 15.30 | |||||
| 13 | W11316052 | Counterweight, Top (Replaces: W11209371) |
|
Immediately | $ 166.26 | ||||
| 14 | W11316053 | Counterweight, Bottom (Replaces: W11290730) |
|
Immediately | $ 168.15 | ||||
| 15 | W11314651 | Screw, Counterweight (Replaces: W11235083) |
|
Immediately | $ 14.84 | ||||
| 16 | W11316766 | Damper Assembly (Replaces: W11094464) |
|
Immediately | $ 95.95 | ||||
| 17 | W11771999 | Spring, Suspension (Replaces: W10896675) |
|
Immediately | $ 16.84 | ||||
| 18 | W11752586 | Enclosure, Vent/fan (Replaces: W10919156) |
|
Immediately | $ 158.09 | ||||
| 19 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.94 | |||||
| 20 | W11316274 | Hose, Ventilation (Replaces: W10919155) |
|
Immediately | $ 35.48 | ||||
| 21 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 12.31 | |||||
| 22 | W11315707 | Drum Light (Replaces: W11040364) |
|
$ 120.53 | |||||
| 23 | W11315709 | Air Duct (Replaces: W11299015) |
|
- | |||||
| 24 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 | |||||
| 25 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 26 | W11315710 | Assembly, Dryer Duct To Bellow (Replaces: W11084279) |
|
- | |||||
| 27 | WP489128 | Screw (Replaces: W10142728) |
|
$ 11.40 |
