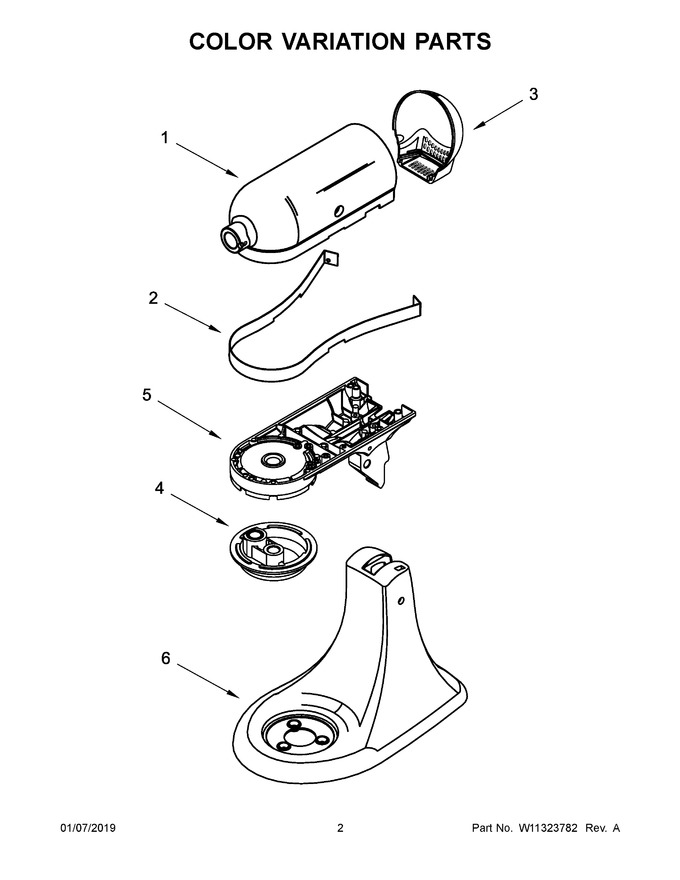

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11204089 | Motor Housing (misty Blue) |
|
$ 56.57 | |||||
| 2 | W11209910 | Trim Band (mascarpone) |
|
- | |||||
| 3 | W11204622 | End Cover (misty Blue) |
|
- | |||||
| 4 | W10342514 | Planetary (sugar Pearl Silver) |
|
$ 45.31 | |||||
| 5 | W11204096 | Lower Gearcase (misty Blue) |
|
- | |||||
| 6 | W11208079 | Pedestal (misty Blue) |
|
- |
